3K.93C HDTV hybrid fiber cable
The 3K.93C Series connectors are the only connectors in the world that are fully compatible with SMPTE, ARIB and EBU standards. It has a lifetime for more than 20,000 plugs and has excellent performance with an insertion loss of only 0.1 dB. The LEMO 3K.93C series connectors are used as standard interfaces for high-definition camera systems by well-known broadcasters all over the world.

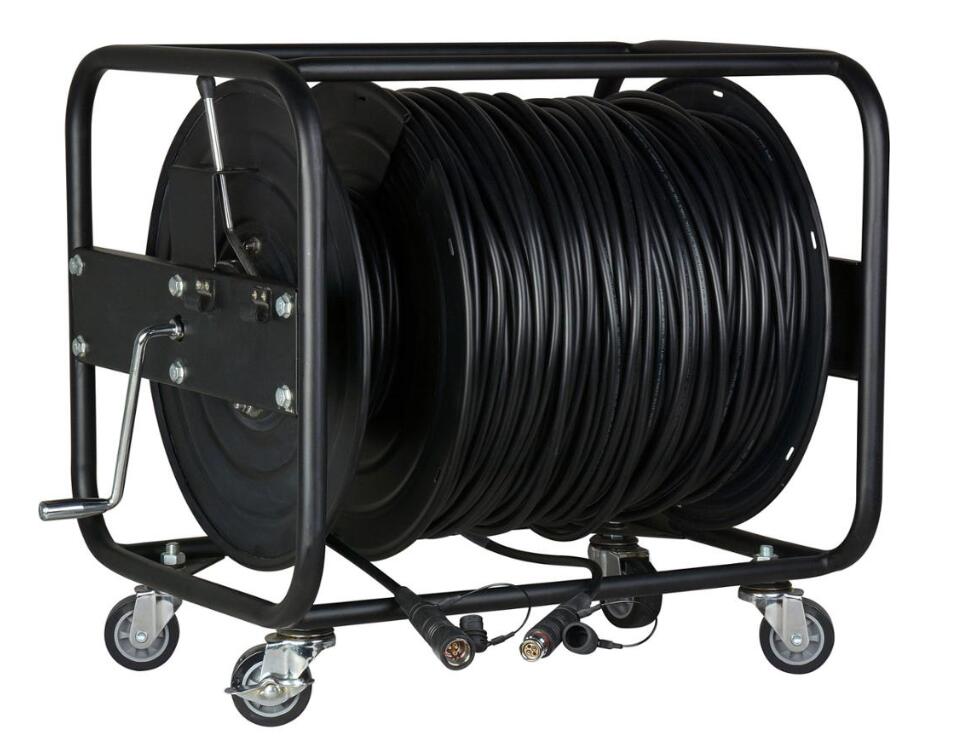

Beijing Fiber Linker releases our 3K.93C HDTV hybrid fiber cable. 3K.93C HD Fiber Hybrid cable assemblies is compatible with SMPTE304, SMPTE311M, ARIB BTA S-1005B and EBU standard for fiber optic cable system and remote power of HDTV camera and OB Van. We could produce different length according to user’s request.
This hybrid cable consists of four cables. Four electric lines (20AWG) is to supply power for HDTV cameras. The are also two signal control lines (24AWG) and two single-mode fiber optic cable for video and audio transmission. The core of this composite cable runs through a 1.8mm high strength of the steel wire, the overall woven mesh shield. This design will ensure the integrity of the structure, while maintaining good winding, which can extend the life of the cable. Such a composite cable can be used to connect different cameras for live broadcast of outdoor work, and can also be used in a fixture of a control room to which a studio camera is connected.
