Description
Description

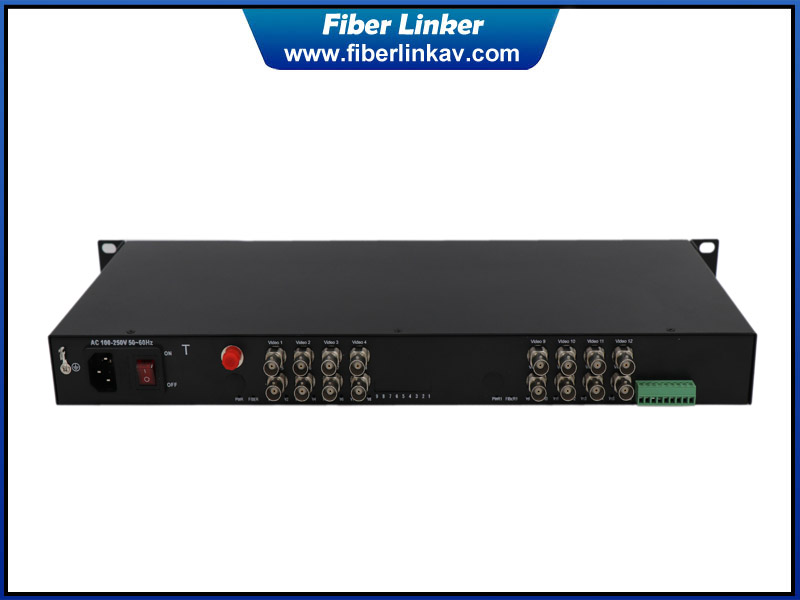

TVI AHD Fiber Converter can simultaneously transmit 16 channel HD TVI/CVI/AHD/CVBS video over one single-mode optical fiber. It is 16 in 1 video to fiber converter. we could add RS232, RS485, RS422 on this AHD fiber converter by your request. We now could do up to 5MPX (2560 x 1920@25fps). It is a kind of universal fiber transmission solution / product for CCTV analog video/data signals . Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status.
Features
1. Non-compression coding technology
2. Automatically identify formats of input videos
3. Support transmission of HD TVI/CVI/AHD/CVBS signal and controlling data simultaneously though fiber optic cable
4. DC 5V power supply
5. Support 720p/25、720p/30、720p/50、720p/60、1080p/25、1080p/30 videos etc
6. Through LED indicators to inform its functional mode
7. Industrial wide range of operational temperature
8. Plug and play, simple installation
9. We could do 5MPX TVI/CVI/AHD fiber converter for your choice
Specification
|
Optic |
|
|
Fiber Connector |
FC/ST/SC |
|
Distance |
20KM (Single-mode fiber), 1KM(multimode fiber) |
|
Wavelength |
1310nm, 1550nm, or CWDM Wave |
|
Fiber Power/Receiver Sensitivity |
-9~ +3dBm/-5 to -24dBm |
|
Video |
|
|
Video Interface Number |
16 channel BNC |
|
Tx Input level/ Rx Output level |
>500mVp-p / 1-1.2Vp-p |
|
Bandwidth of Video |
50M(720P) 100M(1080P) |
|
Differential Phase/ Gain |
≤ 2 / ≤ 2% |
|
Input/Output Impedance |
75 Ω |
|
Surge Protection |
10/700us:(1-1.5kv) |
|
Sampling Digit / Frequency |
10 Bit / 60Mhz |
|
Data |
|
|
Serial Signal |
1-ch reverse RS485 ( RS232, RS422 optional) |
|
Baud Rate |
0-400Kbps terminal block |
|
Others |
|
|
Working Temperature |
-40℃～+85℃ |
|
Relative Humidity |
0-95% ( no condensation) |
|
MTBF |
≥100 000 hours |
|
Power Suppl |
DC5V |
