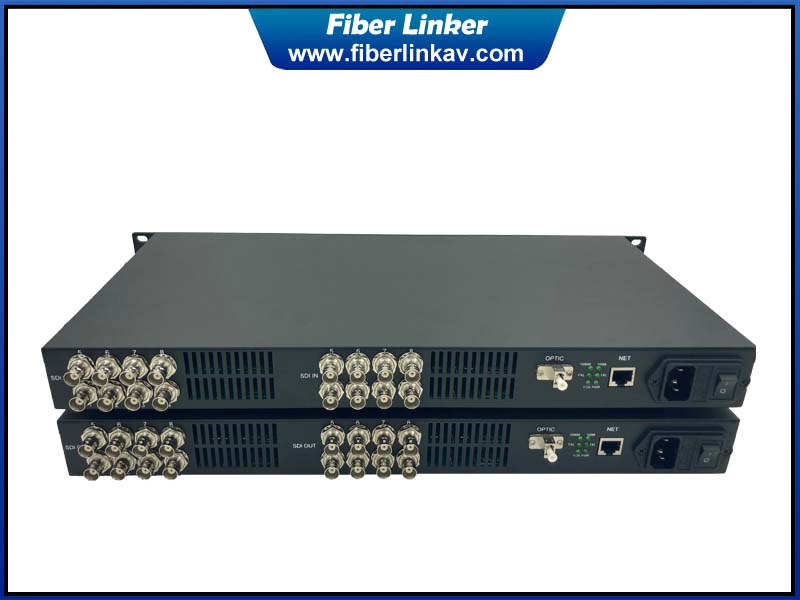

This is a HD-SDI extender with 16 channels over single core fiber optic cable. Our SDI fiber optic extender has been widely used in our domestic and overseas for broadcast TV transmission system. We could do SDI extender over fiber by CWDM, DWDM and TDM uncompressed solution with data, external audio Ethernet, tally and other functions. The fiber connectors could be ST, FC, SC, LC, SMPTE, LEMO type. We welcome any OEM request for SDI over fiber series.
Features
1. 16-ch unibidirectional HD-SDI video with embedded audio and 1000M/100M Ethernet over one fiber
2. Compatible with SD-SDI, DVB-ASI
3. Bandwidth range from 19.4Mb/s to 1.485Gb/s
4. SMPTE 292M (1.485Gb/s) clock recovery
5. support all popular standards for digital video transport such as SMPTE 292M, and SMPTE 259M, SMPTE 297M working at HD-SDI, SD-SDI, ASI respectively
6. Built-in CWDM system, SFP modules for each path
7. OEM fiber connectors, CWDM, DWDM, TDM or mixed solution
8. LED status indicators monitor the critical parameters
9. We could make it as your requested specifications
Specification
HD-SDI Input
Number
16 input
on TX
TV
signal standard
SMPTE292M,259M,297M,305M,310M, M2S, DVB-ASI, DVB-SSI
and other Telecom/Datacom rate（19.4Mb/s – 2.97Gb/s）
Reflection
loss
>15DB
Equilibrium
0-150m @ 1.485Gb/s
Connector
75Ω BNC
HD-SDI Output
Number
16 output on RX
Signal level
800mV nominal
Rise/fall time
200Ps nominal
Overshoot
<10% amplitude
Reflection loss
> 15dB
Jitter
< 0.2UI
Connector
75Ω BNC
Ethernet
1-ch duplex 10/100/1000Mpbs RJ45
Fiber Optic
Channel
1
Type/Distance
Single-mode/20KM standard, optional max 80KM
Wavelength
CWDM 18 wavelength
Connector
FC/PC（ST/PC optional）or OEM SMPTE LEMO
Output
Power
About
+5dB to +8dB
Receiver
sensitivity
-8dB for
20KM,optional max is -24dB
Power and Environmental
Operating temperature
-40℃～＋45℃
Power Supply
90VAC to 245VAC
Power Consumption
12W
EMI/RFI
FCC Part 15 Class A, EU EMC standard
MTBF
>100000
hours
Other
Rack mount
1.5U
Weight
8Kg (TX+RX）

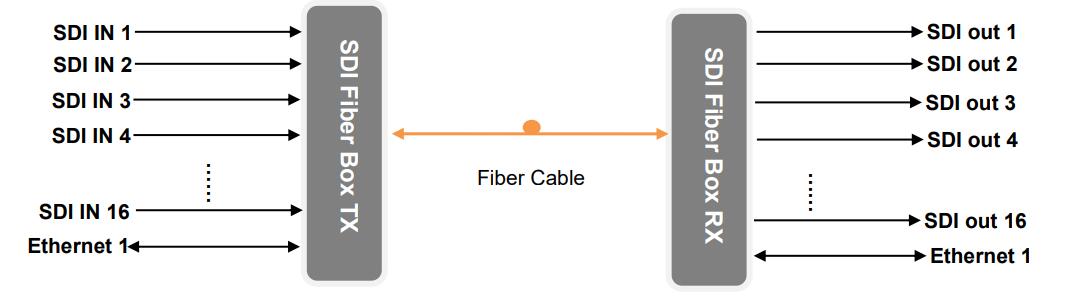

Diagram
