Description

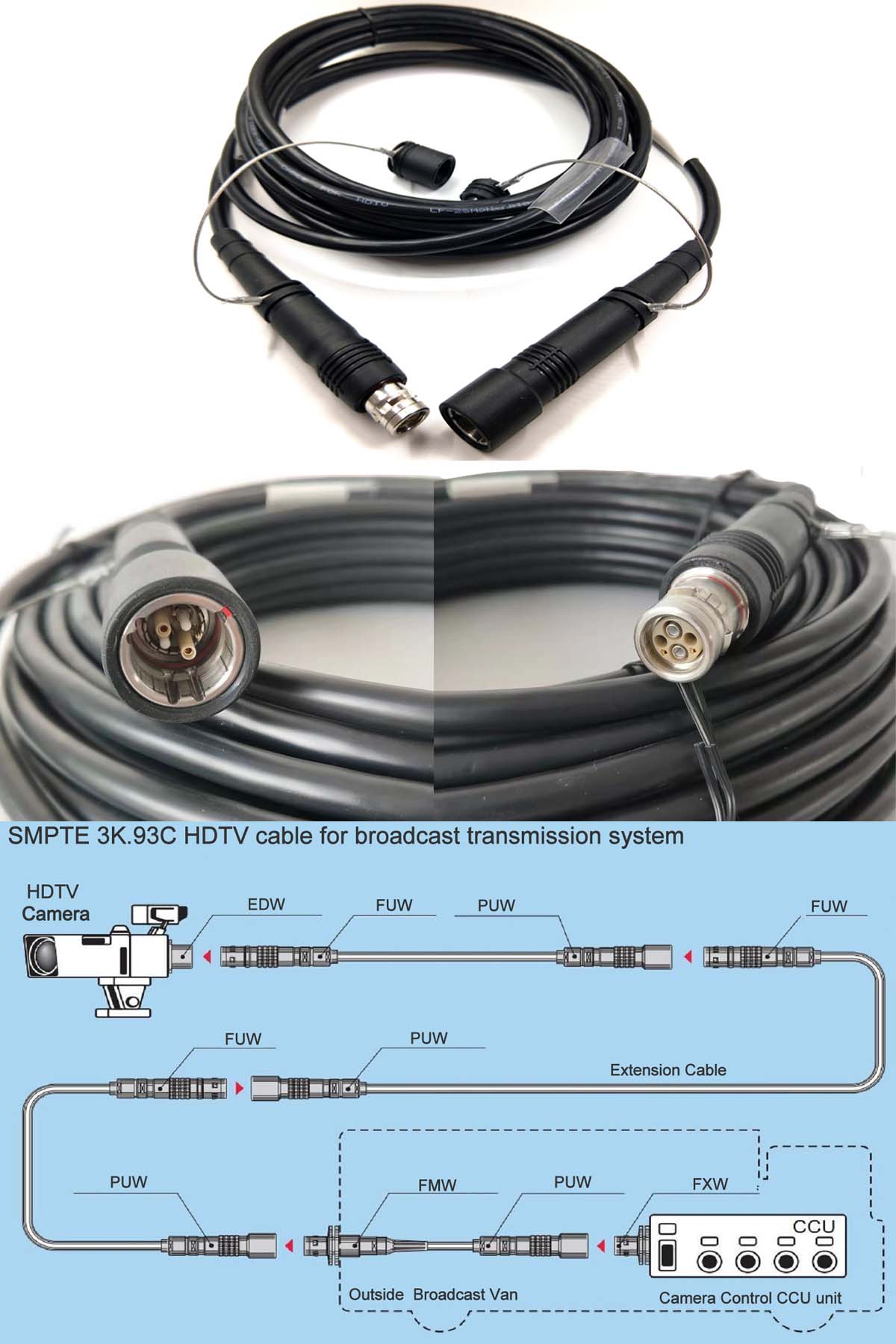

FUW-PUW 30meter HDTV 3K.93C hybrid fiber cable
Description
3K.93C HD fiber hybrid cable complies with SMPTE304, SMPTE311M and ARIB BTA S-1005B etc standards, It could work with LEMO SMPTE fiber optic HDTV interconnection cable assembly or connector. This HDTV fiber cable has internal two single mode fibers and two low-voltage conductors. It could make AV fiber box to supply power from one end to another in long distance video and fiber transmission. This 3K.93C hybrid fiber cable also has stainless steel inside with armored jacket which makes it more reliable and stable in push-pull latching system use of broadcast and industry.The SMPTE cable is widely used in professional broadcast transmission between the Blackmagic Design Camera Fiber Converter to their Studio Fiber Extender
Features
1. optional length with 10meter, 30meter, 100meter, 200meter, 300meter.
2. internal 2 fibres, 2 power contacts and 2 signal contacts.
3. Connectors are protected with gaiters
4. Tested to the requirements of IEC 61300.
5. Compatible with Lemo PUW-FUW connectors
6. Reliable design, sealed to IP68.
7. Optional pre-terminated F2 fiber ferrule, quick and easy on-site installation.
8.Comply with SMPTE、ARIB & EBU Standrad.
