Description

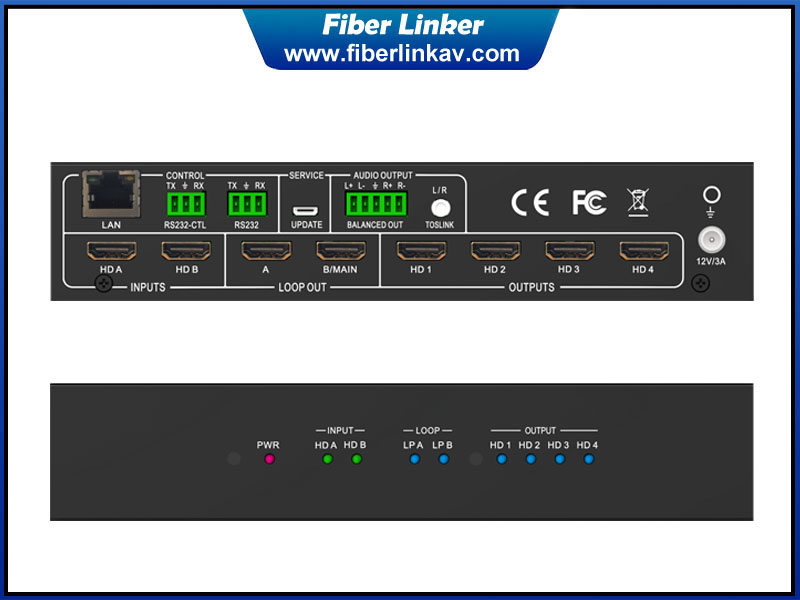

This product is a 4K@60 resolution HDMI 2.0 video wall controller with 2 HDMI input, 2 HDMI loop out and 4 HDMI scaling out for video wall processing. The Toslink jack terminal provides analogue L/R audio and digital SPDIF audio output. 5-pin phoenix jacket provides balanced L/R audio output. With PC Tool or RS232 commands to control the product for different wall display
Features
HDMI 2.0 and HDCP 2.2 compliant
Support multi-resolution up to 3840x2160@60Hz video output for video wall
Support 2 channels HDMI loop out
Support Bezel Compensation with two modes
Support 180º rotation
Support PIP on video wall
Support RS-232 and TCP/IP control
Support CEC control with displayer by PC Tool or commands

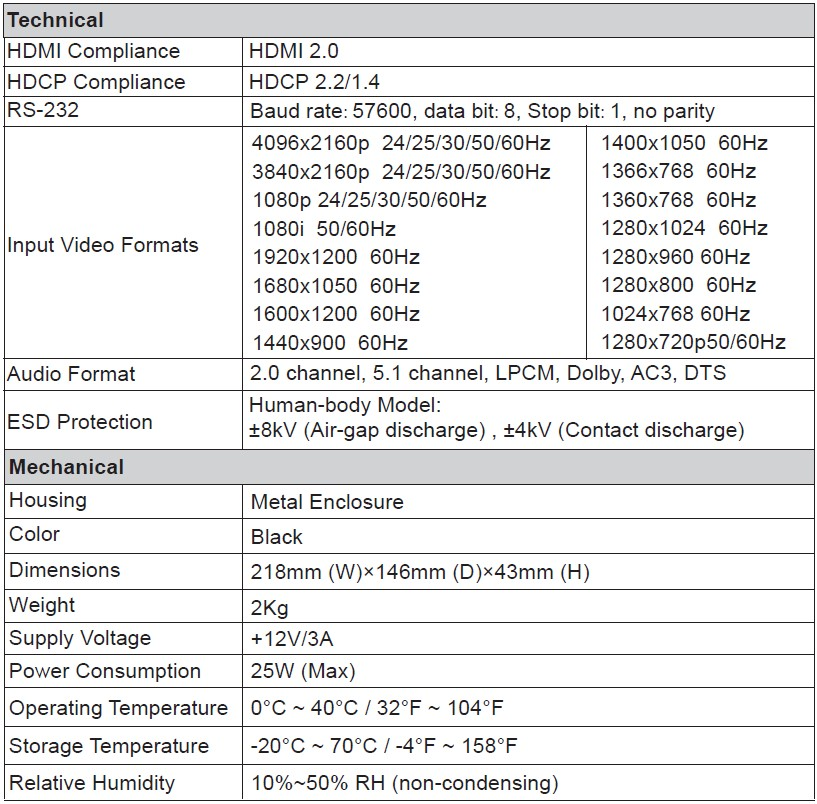

Specification

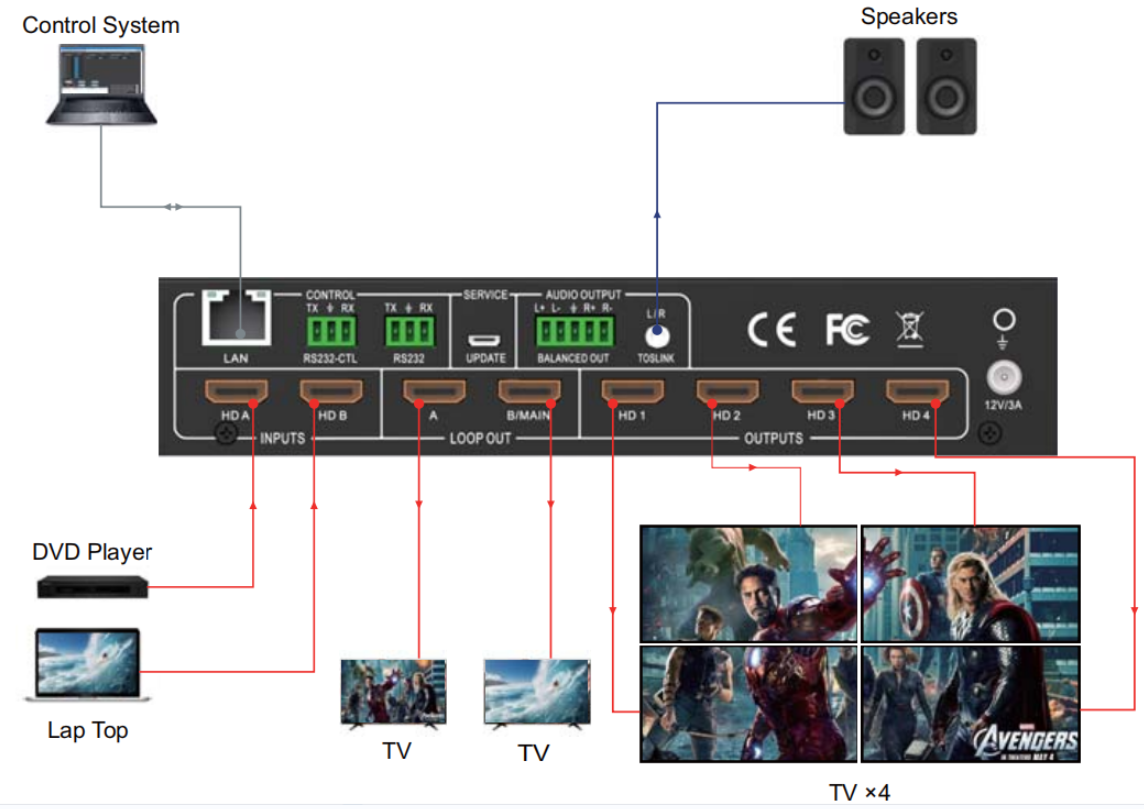

Diagram
