Description
Description

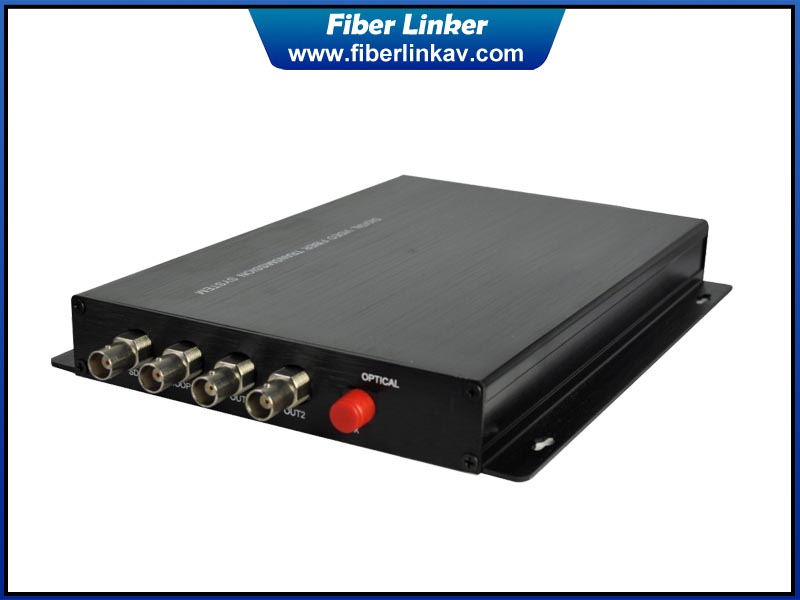

This gear is 1-ch bidirectional SDI Extender with loop out over fiber optic cable. It could extender two-way SDI path over single core optic cable. Each SDI channel has loop out to monitor the signal. Standard optic fiber socket is ST or FC. We could OEM it to 3K.93C port of SMPTE and LEMO.
Features
1. 1-ch bidirectional 3G-SDI/ASI video with loop out
2. Compatible with HD-SDI, SD-SDI, DVB-ASI
3. Bandwidth range from 19.4Mb/s to 2.97Gb/s
4. Clock recovery
5. support all popular standards for digital video transport such as SMPTE 424M, SMPTE 292M, and SMPTE 259M, SMPTE 297M working at 3G-SDI, HD-SDI, SD-SDI, ASI respectively
6. Built-in CWDM system, SFP modules for each path
7. Support automatic cable equalization based on the data rate detected
8. LED status indicators monitor the critical parameters
9. We could make it as your requested specifications
Specification
|
SDI Input |
Number |
1 input on TX and 1 input on RX |
|
TV signal standard |
SMPTE 424M,292M,259M,297M,305M,310M, M2S, DVB-ASI, DVB-SSI and other Telecom/Datacom rate（19.4Mb/s – 2.97Gb/s） |
|
|
Reflection loss |
>15DB |
|
|
Equilibrium |
0-100m @ 2.97Gb/s |
|
|
Connector |
75Ω BNC |
|
|
SDI Output |
Number |
2 output on TX and 2 output on RX ( each end has loop out of SDI input path) |
|
Signal level |
800mV nominal |
|
|
Rise/fall time |
200Ps nominal |
|
|
Overshoot |
<10% amplitude |
|
|
Reflection loss |
> 15dB |
|
|
Jitter |
< 0.2UI |
|
|
Connector |
75Ω BNC |
|
|
Other Function |
OEM ODM supported |
|
|
Fiber Optic |
Channel |
1 |
|
Type/Distance |
Single-mode/20KM standard, optional max 80KM |
|
|
Wavelength |
CWDM 2 wavelength |
|
|
Connector |
FC/PC（ST/PC optional）or OEM SMPTE LEMO |
|
|
Output Power |
About +5dB to +8dB |
|
|
Receiver sensitivity |
-8dB for 20KM,optional max is -24dB |
|
|
Power and Environmental |
Operating temperature |
-40℃～＋45℃ |
|
Power Supply |
90VAC to 245VAC |
|
|
Power Consumption |
12W |
|
|
EMI/RFI |
FCC Part 15 Class A, EU EMC standard |
|
|
MTBF |
>100000 hours |
|
|
Other |
housing |
stand alone |
|
Weight |
4Kg (TX+RX）
|
|

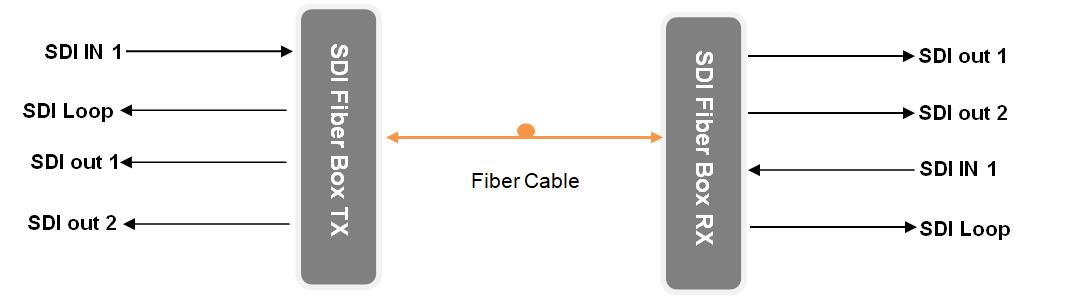

Diagram
