Description
Description

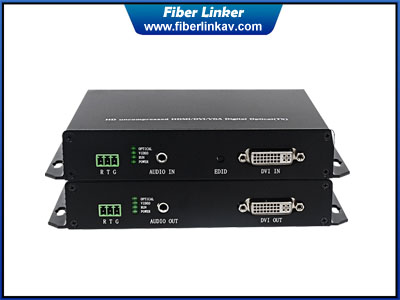

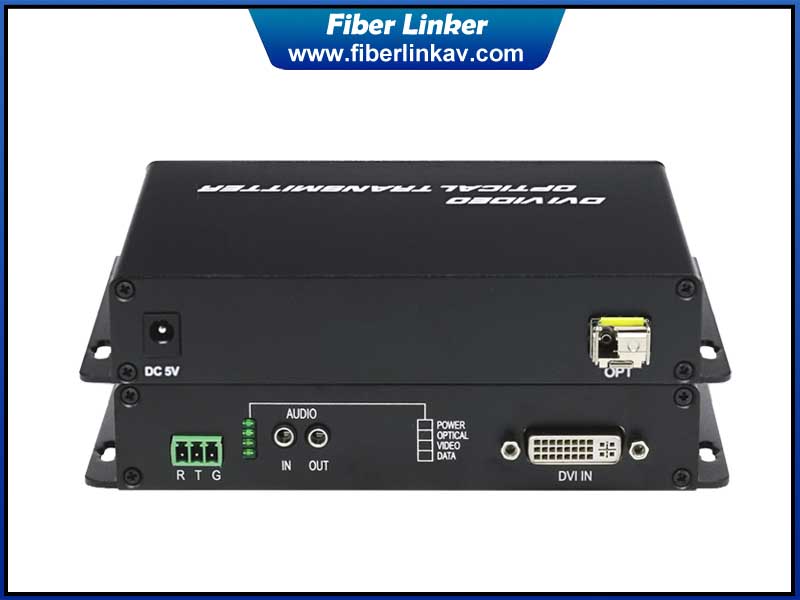

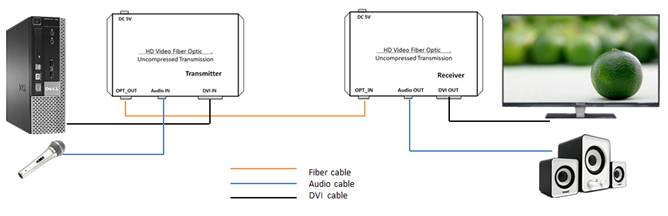

This 1080P DVI fiber converter could extend 1-ch DVI video signal, 1-ch bidirectional stereo analog audio, 1-ch duplex RS232 data to a long distance over single core fiber optic cable. The standard transmission distance is 20KM, optional max 80KM. we could use uncompressed CWDM solution to make 16 channels of DVI transmitted over single core fiber to save the optic cables resources.
Features
1.Compliance with DVI1.0 standard,
2.Support DVI signal input or output.
3. support 1-ch bidirectional stereo audio, 1-ch duplex RS232
4. Support 1080P resolution, single mode fiber transmission up to 20 KM on standard
5.Real-time transmission of high-definition uncompressed digital DVI video signal, the video is clear and stable
6.Built-in ESD protection circuitry, can effectively prevent electrostatic damage
7.Site installation: easy, plug and play, no need to set
8. Uncompressed technology, optional CWDM, DWDM to combine multiple signals to single core fiber cable
Specification
|
Transmitter |
1 DVI |
|
Receiver |
1 DVI |
|
Support Video Format |
1920*1080/60Hz,1280*1024/60Hz， 1280*768/60Hz，1280*720/60Hz, 1024*768/60Hz,800*600/60Hz, |
|
Bandwidth |
3Gbps |
|
Transmission distance |
The default is 20KM for single mode, 300meter for multimode， optional max is 80KM |
|
Input and output audio interface |
3.5MM Audio |
|
Support input and output audio formats |
44.1K,48K,96K,176K,192K |
|
Serial port baud rate(one-way) |
115200 and following adaptively |
|
Fiber Port |
LC/SFP |
|
Wavelength |
1310nm/1550nm |
|
Input Power |
DC5V |
|
Power Consumption |
VGA Transmitter 4W VGA Receiver 4W |
|
Dimensions |
Long*Wide*High(mm)155X115X30 |
|
Operating Temperature Range |
-30 to +70°C |
|
Operating humidity range |
5 to 90 % RH (no condensation) |
|
Package Size |
300*252*100mm |
|
Weight |
1.8kg for transmitter and receiver |
