Description
Description

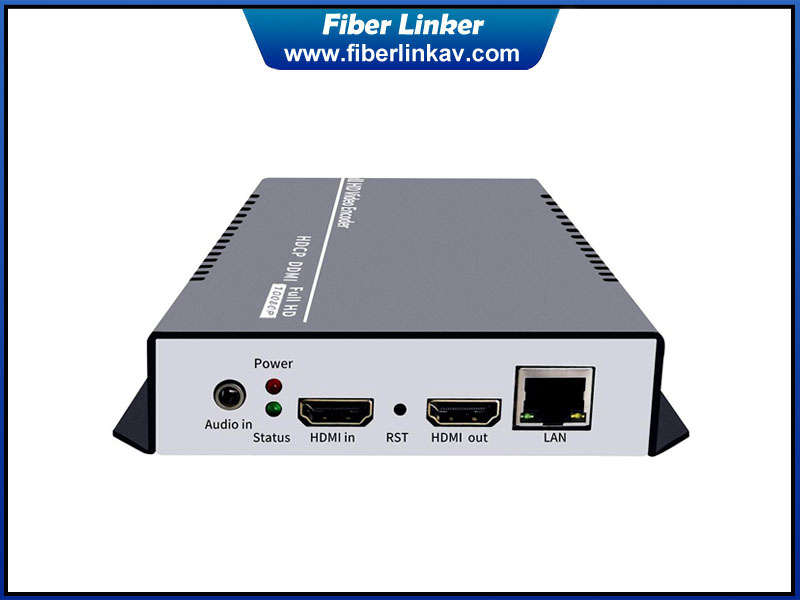

The H.265 HDMI encoder is our professional HD audio and video encoding device with compatible with H.264. It supports 1 channel HDMI input H.264 /AVC high profile /main profile /baseline profile coding format with local HDMI loopout. This video encoder is streaming by HTTP, RTSP, UDP /RTP, RTMP, RTMPS, ONVIF, HLS, FLV. HDMI max resolution is 1080p@60fps.
Its high integration and cost-effective design make this device widely used in the variety of field such as hotel IPTV system, live streaming broadcast, streaming media server etc. Also, the encoder works with the online live broadcast platform, such as YouTube, Ustream, Twitter, Facebook, etc.
Not only single channel, we also produce multichannel HDMI video encoder which is packed with 1U /3U box
Features
1.Support Max HDMI max resolution is 1080P@60fps
2. Support one HDMI input with local loop output
3.Support external stereo audio input
4.Support for ONVIF protocol and NVR recording
5.H.265 HEVC/ H.264/AVC Baseline/Main/High Profile Level 4.2
6.Support MP3/ AAC / G.711 Advanced Audio Coding format quality
7.CBR / VBR rate: 16Kbps ~ 32Mbps
8.1000M Base-T network
9.Support HTTP, RTSP, RTMP, RTMPS, RTP, UDP multicast, UDP unicast, FLV, HLS and other protocols
10.Output video stream format: TS/VES/AES stream, etc.
11.WEB operation interface, support remote management and upgrade.
12.Supports mainstream and multi-protocol sub-stream output
13.Support output resolution setting independently
14.Support LAN, WAN Support one-key restore
15.Support DHCP to obtain IP automatically

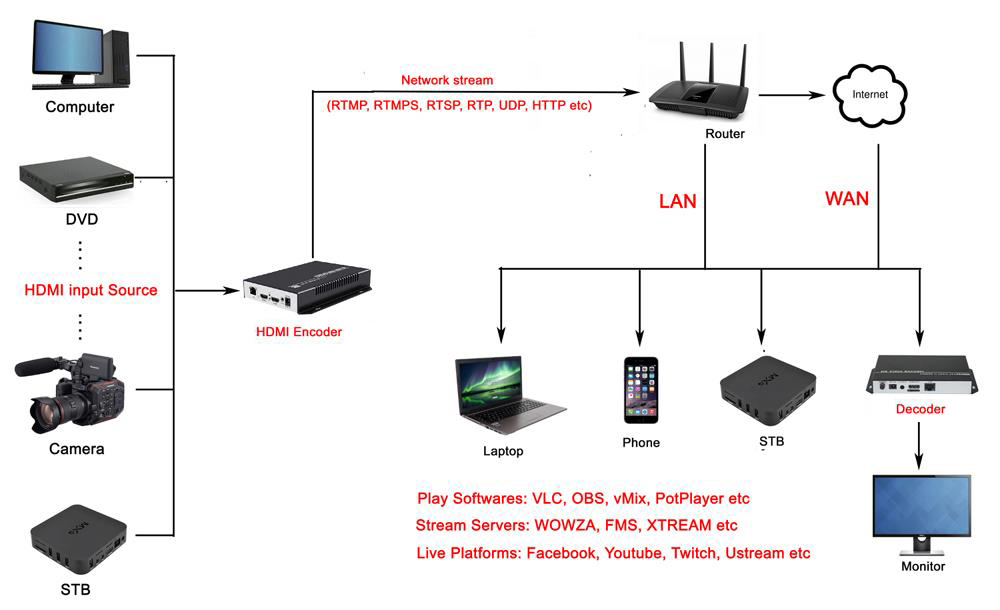

Application
Internet TV (IPTV) HD capture system, Internet video conference front-end capture, Digital signage HD streaming server, Operation room live broadcast, recording system, Teaching broadcast, recording system, Digital court HD broadcast, recording system, Network monitoring system platform front-end capture
Specification
Video |
|
Input interface |
HDMI*1 |
Support resolution |
1920×1080\1600x1200\1600x900\1400x1050\1440x900\1360x768\1280x720\1280x800\ |
Output interface |
Ethernet port(RJ45) *1 HDMI*1 |
Video encoding |
H.265 HEVC/ H.264/AVC Baseline/Main/High Profile Level 4.2 |
Code Rate control |
16kbps- 32Mbps |
Code Rate |
CBR/VBR |
Audio |
|
Input interface |
External audio* 1 |
Audio encoding |
ACC, MP3 |
Sampling rate |
44100/48000 Hz |
Bit-rate Option |
32K/48K/64K/96K/128K/160K/192K/384K |
Sampling Accuracy |
24 Bit |
Audio Data-rate |
32Kb/s to 384Kb/s |
Network |
|
RJ45 |
10M/1000M Ethernet port |
Program streaming |
HTTP, UDP/RTP, RTSP, RTMP, RTMPS,ONVIF, HLS, FLV,Multicast,Unicast |
Control Panel |
Web panel ( Language is English), remote upgrade |
Firmware Update |
Enable by uploading files to the dashboard |
General |
|
Dimension(W*L*H) |
166*102*280mm |
Gross Weight |
0.5kg |
Temperature |
0 ~ 45℃(for working),-20~60℃(for storing) |
Humidity |
<90%, non-condensing |
Input Voltage |
DC 12V/1A |
