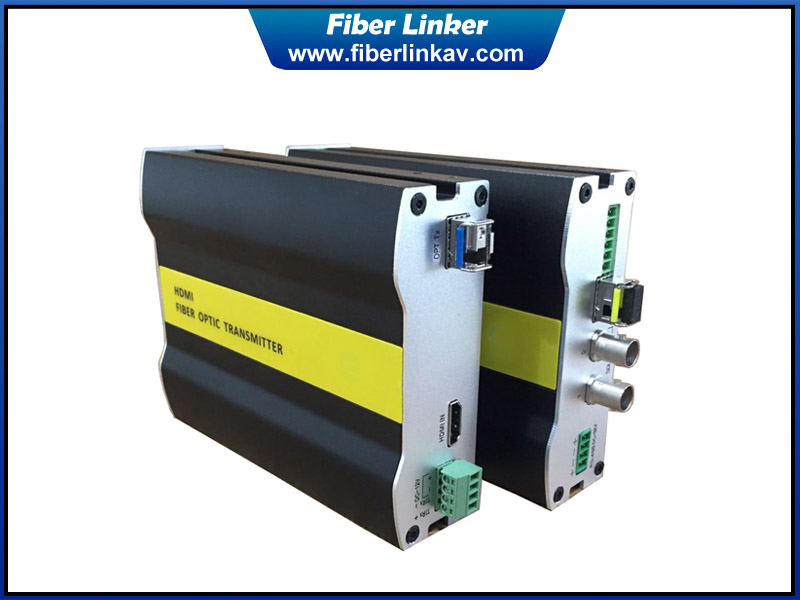

Beijing Fiber Linker Communication Co., Ltd has been in video audio transmission system solution for almost 10 years. Our HDMI SDI fiber optic extender has been widely used in our domestic and overseas for broadcast TV transmission system. We could do SDI extender over fiber by CWDM, DWDM and TDM uncompressed solution with data, external audio Ethernet, tally and other functions. The fiber connectors could be ST, FC, SC, LC, SMPTE, LEMO type. We welcome any OEM request for SDI over fiber series.
Features
1. Transmitter is 1-ch HDMI input, one fiber out
2. Receiver is 2-ch 3G-SDI out，Compatible with HD-SDI, SD-SDI, DVB-ASI
3. Pass through the detection of morbid code”CHECKFIELD”, refuse image flicker/black screen
4. SFP single fiber transmission, optional CWDM DWDM, wavelength
5. Support 720P, 1080P standard resolution
6. Optional reverse RS485 data
7. Optional SNMP control function
8. Could support 3U rack mount with insert cards
9. Broadcast quality with uncompressed solution
Specification
HDMI Input
Number
1 input
Connector
HDMI Type A, 19-pin, female
Bandwidth
3Gbps
Resolution
720p 50/59.94/60
1080i 50/59.94/60
1080p 23.976/23.98/24/25/29.97/30
1080p 50/59.94/60
Electrical
TMDS Level (complying with DVI1.0)
SDI Output
Number
1 output with optional loop
Signal level
800mV nominal
Rise/fall time
200Ps nominal
Overshoot
<10% amplitude
Reflection loss
> 15dB
Jitter
< 0.2UI
Connector
75Ω BNC
RS485
Optional
Fiber Optic
Channel
1
Type/Distance
Single-mode/20KM standard, optional max 80KM
Wavelength
1310 and 1550nm standard, optional CWDM DWDM
Connector
LC/PC SFP
Output Power
About -6 dB to -3dB standard for 20KM
Receiver sensitivity
-8dB for 20KM, optional max is -21dB
Power and Environmental
Operating temperature
-40℃～＋45℃
Power Supply
90VAC to 245VAC to 12V1A
Power Consumption
5W
EMI/RFI
FCC Part 15 Class A, EU EMC standard
MTBF
>100000 hours
Other
Housing
112×144×38mm(WXDXH)
Weight
2Kg (TX+RX）

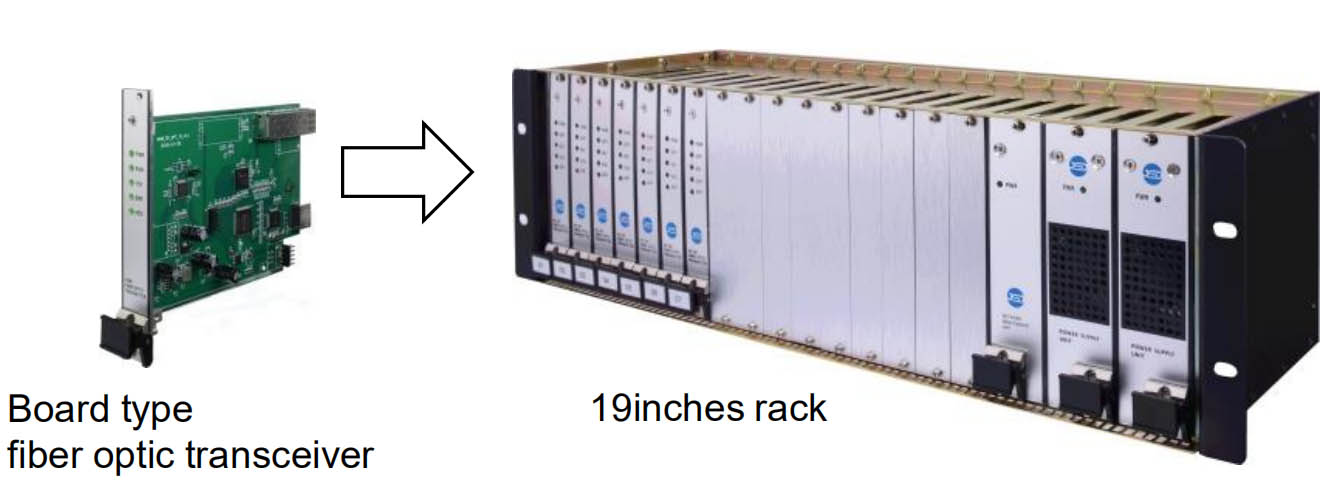

Rack Mount(Support 16 channels insert cards and optional SNMP card)

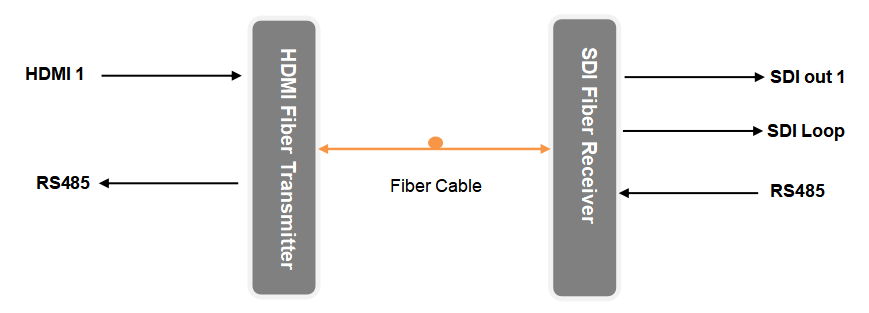

Diagram
