Description
Description

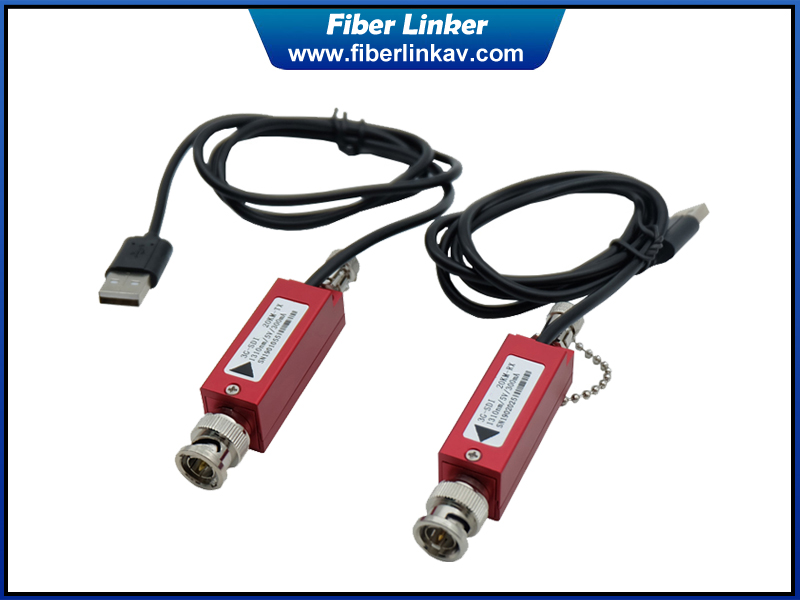

This 3G-SDI Fiber Converter is the minature type with rattler gear shape. It could be power on by USB interface, plug and play. This fiber converter could extend 3G-SDI signals to 20KM distance over one ST fiber cable. It has been widely used in our domestic and overseas for broadcast TV transmission system. The SDI fiber converter supports HD-SDI, SD-SDI, ASI, TS signals.
Features
1. Support SMPTE-424M(3G-SDI) ,SMPTE-292M(HD-SDI) and SMTPE-259M(SD-SDI)
2. Compact small size, easy to install
3. Data rate from 19.4Mbps up to 2.97Gb/s
4. SMPTE 424M (2.97Gb/s) clock recovery
5. support all popular standards for digital video transport such as SMPTE 424M, SMPTE 292M, and SMPTE 259M, SMPTE 297M working at 3G-SDI, HD-SDI, SD-SDI, ASI respectively
6. +5V power supply; micro USB-B connector or 5.5mm DC jack with pigtail
7. Support automatic cable equalization based on the data rate detected
8. LED status indicators monitor the critical parameters
9. Optional CWDM wavelength
Specification
SDI Input
Number
1
TV
signal standard
SMPTE 424M,292M,259M,297M,305M,310M, M2S, DVB-ASI, DVB-SSI and other Telecom/Datacom
rate （19.4Mb/s
– 2.97Gb/s）
Reflection
loss
>15DB
Equilibrium
0-100m @ 2.97Gb/s
Connector
75Ω BNC male
SDI Output
Number
1
Signal level
800mV nominal
Rise/fall time
200Ps nominal
Overshoot
<10% amplitude
Reflection loss
> 15dB
Jitter
< 0.3UI
Connector
75Ω BNC male
Fiber Optic
Channel
1
Type/Distance
Single-mode/20KM standard, optional max 80KM
Wavelength
1310nm standard, optional CWDM 16 wavelength
Connector
ST/PC（LC/PC optional）
Output
Power
About -6dB
to +1dB
Receiver
sensitivity
-8dB for
20KM, optional max is -24dB
Power and Environmental
Operating temperature
-40℃～＋45℃
Power Supply
+5V
Power Consumption
3W
EMI/RFI
FCC Part 15 Class A, EU EMC standard
MTBF
>100000
hours
Other
Size
190*19*18mm
Weight
1Kg (TX+RX）
Diagram
