Description
Description

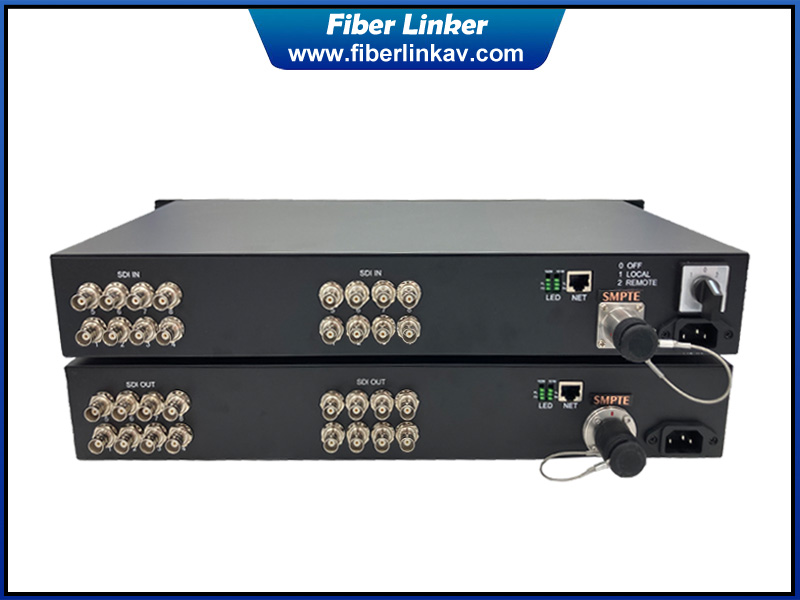

This HD-SDI fiber optic extender has LEMO compatible 3K.93C SMPTE311M/SMPTE304M connector. It could use FUW-PUW assembly HDTV hybrid fiber cable to transmit 16 channels of SDI camera signal and Ethernet network to remote area like OB VA. This SMPTE fiber converter could be up to 2KM over SMPTE cable and 20KM over PUW/PUW to LC/SC/ST/FC pure fiber optic cable. Our
Our SDI optical network gears have been widely used in our domestic and overseas for broadcast TV transmission system. We could do SDI extender over fiber by CWDM, DWDM and TDM uncompressed solution with data, external audio Ethernet, tally and other functions. The fiber connectors could be ST, FC, SC, LC, SMPTE, LEMO type. We welcome any OEM request for SDI over fiber series.
Features
1. 8-ch bidirectional HD-SDI/ASI video with embedded audio and 1000M/100M Ethernet
2. Compatible with HD-SDI, SD-SDI, DVB-AST, could OEM 12G-SDI or 6G-SDI
3. Bandwidth range from 19.4Mb/s to 1.485Gb/s
4. SMPTE 292M (1.485Gb/s) clock recovery
5. support all popular standards for digital video transport such as SMPTE 292M, and SMPTE 259M, SMPTE 297M working at HD-SDI, SD-SDI, ASI respectively
6. Built-in CWDM system, SFP modules for each path, SMPTE311/304M 3K.93C connector for fiber optic
7. Support automatic cable equalization based on the data rate detected
8. Support remote power supply from receiver to transmitter. Receiver has self-detect for protection
9. We could make it as your requested specifications
Specification
|
SDI Input |
Number |
8 input on TX and 8 input on RX |
|
TV signal standard |
SMPTE 292M,259M,297M,305M,310M, M2S, DVB-ASI, DVB-SSI and other Telecom/Datacom rate（19.4Mb/s – 1.485Gb/s） |
|
|
Reflection loss |
>15DB |
|
|
Equilibrium |
0-150m @1.485Gb/s |
|
|
Connector |
75Ω BNC |
|
|
SDI Output |
Number |
16 output on RX |
|
Signal level |
800mV nominal |
|
|
Rise/fall time |
200Ps nominal |
|
|
Overshoot |
<10% amplitude |
|
|
Reflection loss |
> 15dB |
|
|
Jitter |
< 0.2UI |
|
|
Connector |
75Ω BNC |
|
|
Ethernet |
1-ch duplex 10/100/1000Mpbs RJ45 |
|
|
Fiber Optic |
Channel |
dual |
|
Type/Distance |
Single-mode/20KM for pure fiber optic able, 2KM over SMPTE cable |
|
|
Wavelength |
CWDM 18 wavelength |
|
|
Connector |
SMPTE311/304M LEMO connector |
|
|
Output Power |
About +5dB to +8dB |
|
|
Receiver sensitivity |
-8dB for 20KM,optional max is -24dB |
|
|
Power and Environmental |
Operating temperature |
-40℃～＋45℃ |
|
Power Supply |
90VAC to 245VAC, TX box could be powered by remote RX box over SMPTE cable |
|
|
Power Consumption |
12W |
|
|
EMI/RFI |
FCC Part 15 Class A, EU EMC standard |
|
|
MTBF |
>100000 hours |
|
|
Other |
Rack mount |
1.5U |
|
Weight |
8Kg (TX+RX）
|
|
Diagram
