Description
Description

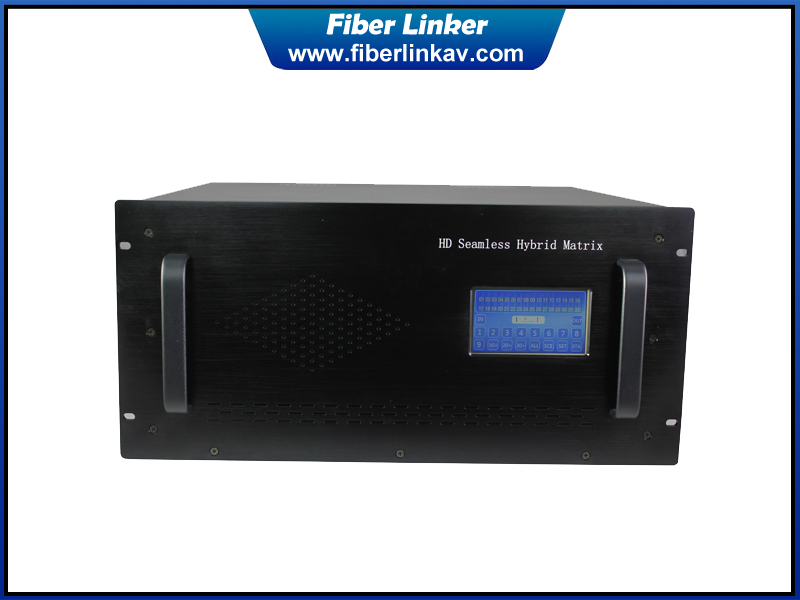

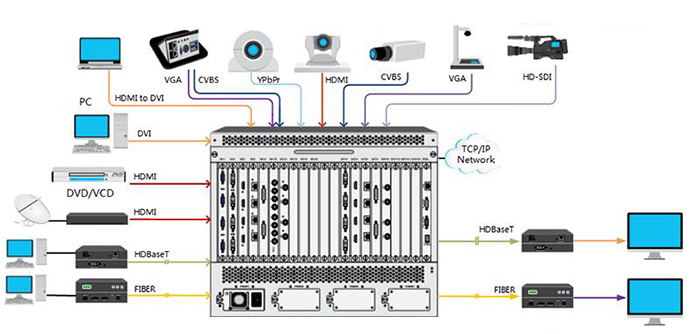

Seemless Hybrid Matrix Router is a professional matrix switcher of high-performance embedded intelligent control. It provides most kinds of video signals to switching randomly by 20U rack mount for max 144 channels input and output which provides a stable and reliable high-definition audio and video signal transmission switching hub for the system. It is widely applied in digital video multi-screen display systems, radio and television systems, multimedia video conference, large screen display systems, high definition television teaching, visual command and control centers, medical teaching, etc
Features
1. Max 144 input and 144 output
2. Fully digital switching
3. Seamless switching without delay
4. Input signal resolution coude be self adaptive, output resolution could be adjustable
5. Support 3G-SDI/HD-SDI, HDMI,DVI,VGA, Ypbpr, CVBS
6. Support analog audio input and output
7. 1 card has 4-channel video
8. 4.3inch display touch screen for easy control
9. Power off self-protection
10. High-quality, high-volume production, high compatibility and stability, and highly cost effective;
11. Switching mode: RS-232, panel buttons, Net control
Specification
|
VGA |
Input |
Output |
|||
|
Impedance |
75Ω |
||||
|
Level |
0.7V |
||||
|
Resolution |
640x480@60Hz to1920x1200@60Hz |
1024x768,1280x1024,1440x900,1360x768,1680x1050, 1600x1200,1280x720,1920x1080,1920x1200 |
|||
|
Synchronous inputs |
Independent line field |
||||
|
connector |
DB15FM |
||||
|
HDMI/DVI |
|||||
|
Clock frequency |
25Mhz-225Mhz |
||||
|
Resolution |
640x480@60Hz to 1920x1200@60Hz |
1024x768,1280x1024,1440x900,1360x768,1680x1050, 1600x1200,1280x720,1920x1080,1920x1200, 576i,720P50/60,1080i50/60, 1080P25/30/50/60 |
|||
|
Standard |
DVI1.0 HDMI1.3 HDCP1.2 |
||||
|
Connector |
Type A 19pin HDMI or DVI-D |
||||
|
SDI input/output |
|||||
|
Rate |
143Mbps~2.97Gbps |
||||
|
Standard |
SMPTE 259M,292M,344M,424M, audio compatible with SMPTE291 |
||||
|
Impedance |
75Ω |
||||
|
Return loss |
>18db 143MHz-2.97G |
||||
|
Range |
800mv±5% |
||||
|
Rise/Fall time |
<270ps (20%~80%) |
||||
|
Connector |
BNC |
||||
|
Ypbpr |
Input |
Output |
|||
|
Impedance |
75Ω |
||||
|
Level |
0.7V |
||||
|
Resolution |
480i,576i,480P,576P,720P,1080i50/60, 1080P25/30/50/60 |
576i,720P50/60,1080i50/60, 1080P25/30/50/60 |
|||
|
Synchronous inputs |
SOG |
||||
|
connector |
DB15FM,(1-Cr,2-Y,3-Cb) |
||||
|
CVBS Input/Output |
|||||
|
Impedance |
75Ω |
||||
|
Level |
1Vp-p |
||||
|
Format |
NTSC,PAL self adaptive |
||||
|
Connector |
BNC |
||||
|
Analog Audio Input and Output |
|||||
|
Connector |
3.5mm stereo audio hole |
||||
|
Level |
0.5-2.0Vp-p |
||||
|
Impedance |
600Ω |
||||
|
Ethernet Control |
|||||
|
Protocol |
TCP/IP control PTNET(programmable panel) |
||||
|
RS-232 control interface |
|||||
|
Serial control interface |
RS-232, 9-pin female D-type interface |
||||
|
Baud rate and protocol |
Baud rate: 9600, data bit:8, stop bit: 1, no parity |
||||
|
Structure of serial control interface |
2 = TX, 3 = RX, 5 = GND |
||||
|
Working Environment |
|||||
|
Power supply |
100VAC~240VAC, 50/60 Hz, international adaptive power |
||||
|
Temperature |
Storage and operating temperature: -40°~ +70°C |
||||
|
Humidity |
Storage and operating humidity: 10% ~ 90% |
||||
|
MTBF |
60,000 hours |
||||
