Description

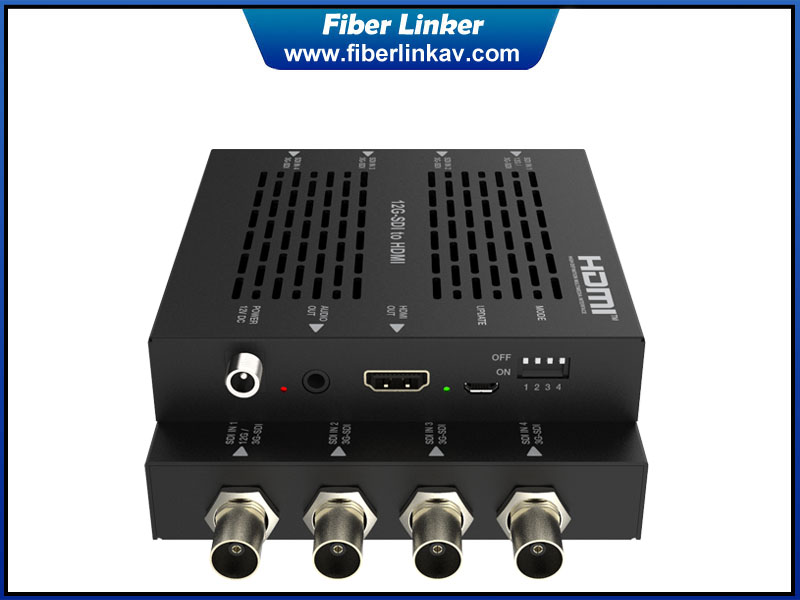

This SDI to HDMI Converter is designed to work under two modes: 4×3G-SDI and 12G-SDI. In 4×3G-SDI mode, 4ch 3G-SDI signals can be converted to an HDMI signal and transmitted with a distance up to 100m/328ft; in 12G-SDI mode, the 12G-SDI signal can be converted to HDMI signal directly and distributed to a display 60m/197ft away. It supports video resolution up to 4K2K@60Hz and LPCM audio format.
Features
☆ Compatible with HDMI 2.0b, output without HDCP, video bandwidth up to 18Gbps
☆ Compatible with SDI standards: SMPTE ST-2082, SMPTE ST-2081, SMPTE 425M-AB, SMPTE 424M, SMPTE 292M, and SMPTE 259M-C， video bandwidth up to 12Gbps
☆ Maximum transmissin distance: 100m/328ft in 4×3G-SDI mode, 60m/197ft in 12G-SDI mode
☆ Support video resolution up to 4K2K@60Hz YCbCr 4:2:2
☆ Support DIP switch control
☆ Support LPCM audio format
☆ Support audio extract to analog output
☆ Compact design for easy and flexible installation

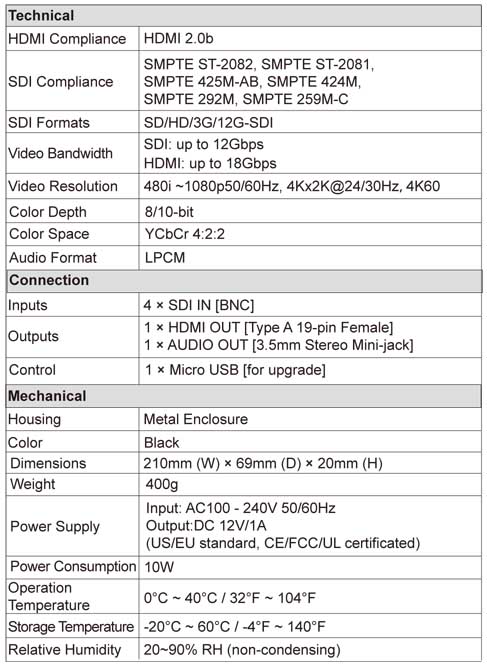

Specifications

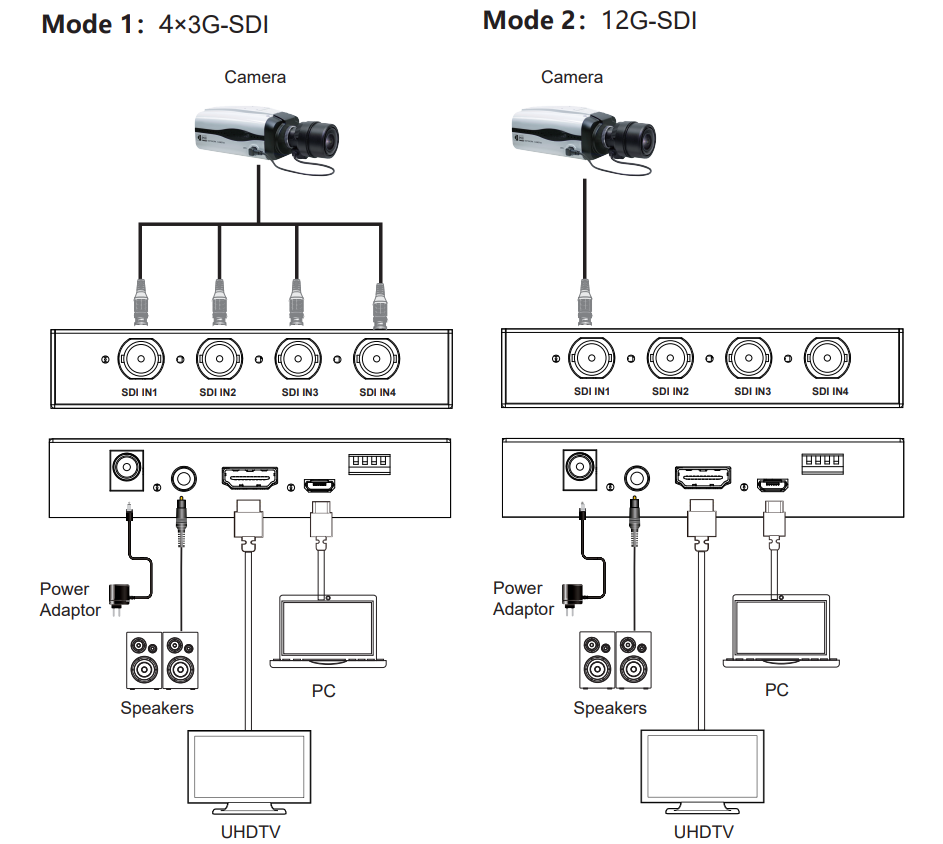

Converting modes
