Description
Descriptioin

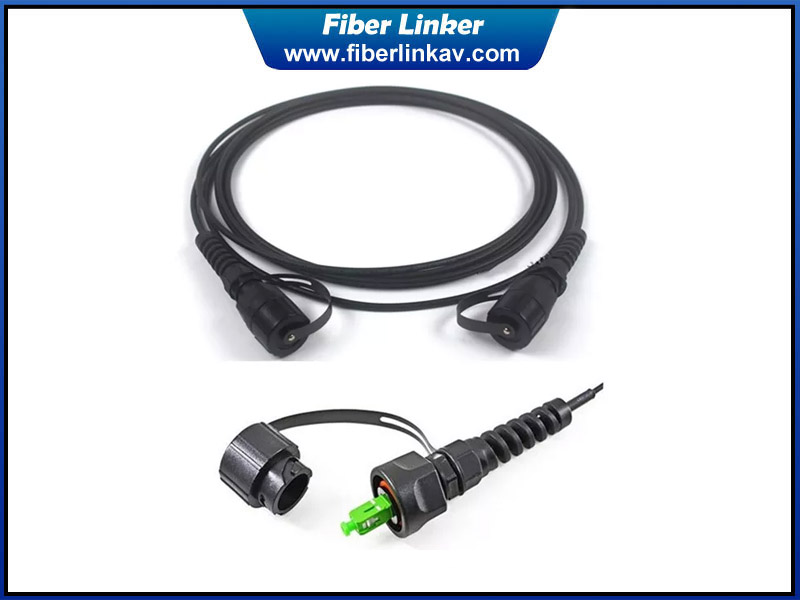

Tactical Armored ODVA Fiber Optic Cable and adapter could support IP67 water proof and IP67 environmental sealing ratings. This type of fiber cable is the ideal choice for a low cost and easy to use industrial solution like fiber to the Antenna (FTTA), or any other harsh environmental applications. The dust cap is well enough to protect ruggedized patch cords from exposure of elements or accidental damage . ODVA harsh environment optical cable assemblies are widely used for fixed or mobile applications and reliably transfer data to a long distance
Features
1.We supply ODVA fiber optic cable with LC/SC/MPO, ODVA adapter, ODVA jumper, ODVA terminal box, OEM length
2.Support IP67 Waterproof for harsh industrial or outdoor environment
3.Support salt-mist proof, and EMI protection
4.Quick-release quarter-turn bayonet locking to panel mount connector.
5.Thread the locking mechanism can ensure long-term reliable connection
6.High current carrying capability. Cable to cable and cable to receptacle connection.
7.Protective cap with tether available.
Applications
● Outdoor harsh environment fiber optic communications use
● Outdoor communication device is connected
● Military communication devices
● Oil, mining communication connection
● The wireless Remote base station
● Video surveillance systems
● Fiber sensing
● Railway signal control using
● Intelligent substation station communication
Specifications
|
Insertion Loss |
≤1.00dB（Typical≤1.50dB）（SM) ≤1.00dB（Typical≤0.20dB）（MM) |
|
|
Return Loss |
SM |
≥50dB |
|
Mechanical |
Plug |
≤500N(main cable) |
|
|
Socket |
≤30N(branch cable) |
|
Fiber |
SM/MM |
1C, 2C, 8C, 12C or 24C |
|
Cable OD |
4.0mm/5.0mm/7.0mm |
|
|
Outer Sheath |
TPU or LSZH |
|
|
Anti-push Unit |
KEVLAR |
|
|
Fiber Type |
9/125, 50/125, 62.5/125 |
|
|
Fiber Outer |
9/125/250um fiber |
|
|
Tensile Strength |
Short term: 600N, Long term: 200N |
|
|
Operature Temp |
-45℃ to 85℃ |
|
|
IP Rate |
IP67 |
|
