Description
Description

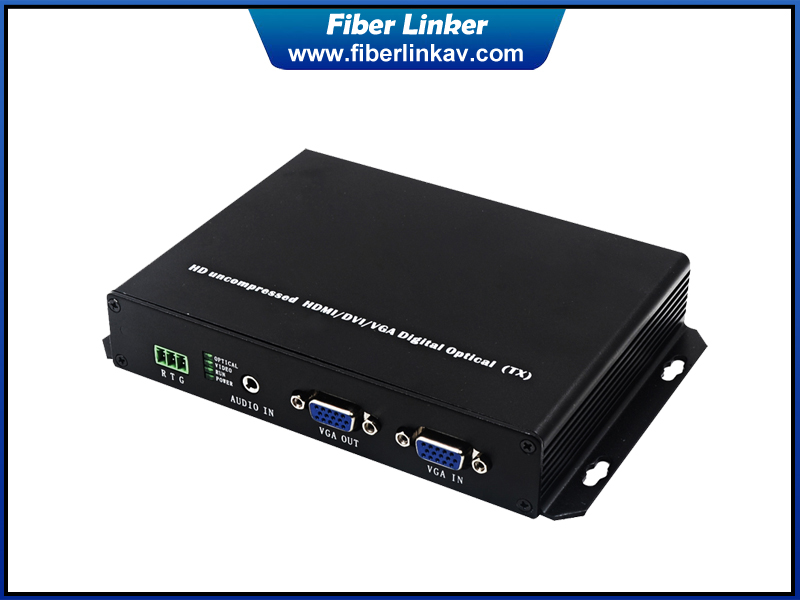

The VGA Fiber Optic Extender consists of the transmitter and the receiver which is also named as VGA fiber converter. It uses advanced uncompressed digital HD video and high-speed digital fiber optic transmission technology, you can easily transmit a variety of resolutions of computers, high-definition video sources, HD DVD / DVR and other equipment output of VGA HD signals over long distances to the remote place over single core fiber optic cable. The device has local VGA loop-through in transmitter, supports independent analog audio with optional RS232, KVM.
Features
1.All-digital, uncompressed, high-definition optical transmission
2.Compliance with the VGA standard protocol
3.Support Independent analog audio
4.Support local loop in transmitter end
5.Optional RS232 and USB for Keyboard and Mouse
6.Automatic identification and configure various display modes
7.The highest resolution to 1080P @ 60Hz, and compatible with lower resolution
8.Single / multi-mode fiber transmission, SFP module
9.Built-in ESD protection circuitry, can effectively prevent electrostatic damage
10.Site installation: easy, plug and play, no need to set
Specification
|
Transmitter |
1 VGA in and 1VGA out |
|
Receiver |
1VGA out |
|
Support Video Format |
1920*1080/60Hz,1280*1024/60Hz， 1280*768/60Hz，1280*720/60Hz, 1024*768/60Hz,800*600/60Hz, |
|
Bandwidth |
3Gbps |
|
Transmission distance |
The default is 20KM for single mode, 300meter for multimode， optional max is 80KM |
|
Input and output audio interface |
3.5MM Audio |
|
Support input and output audio formats |
44.1K,48K,96K,176K,192K |
|
Serial port baud rate(one-way) |
115200 and following adaptively |
|
Fiber Port |
LC/SFP |
|
Wavelength |
1310nm |
|
Input Power |
DC5V |
|
Power Consumption |
VGA Transmitter 4W VGA Receiver 4W |
|
Dimensions |
Long*Wide*High(mm)155X115X30 |
|
Operating Temperature Range |
-30 to +70°C |
|
Operating humidity range |
5 to 90 % RH (no condensation) |
|
Package Size |
300*252*100mm |
|
Weight |
1.8kg for transmitter and receiver |

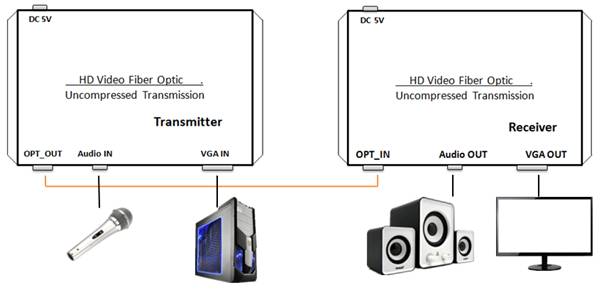

Diagram
