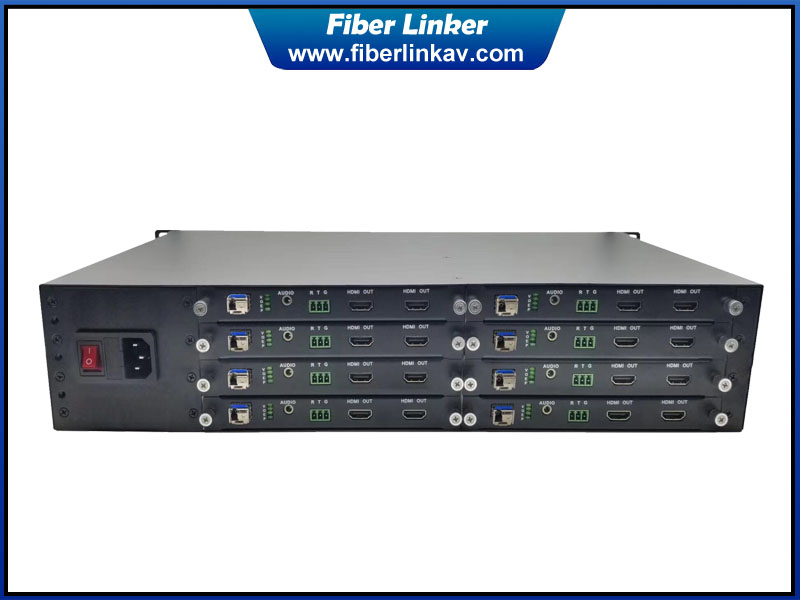

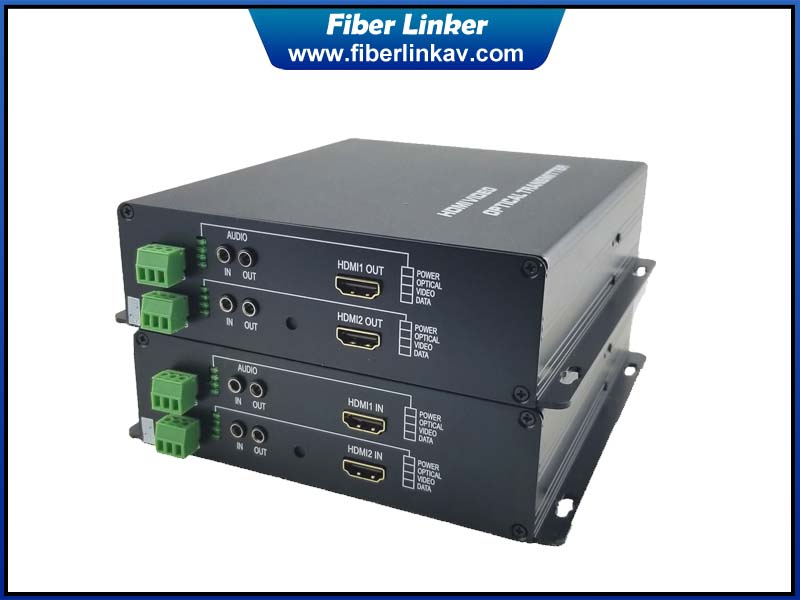

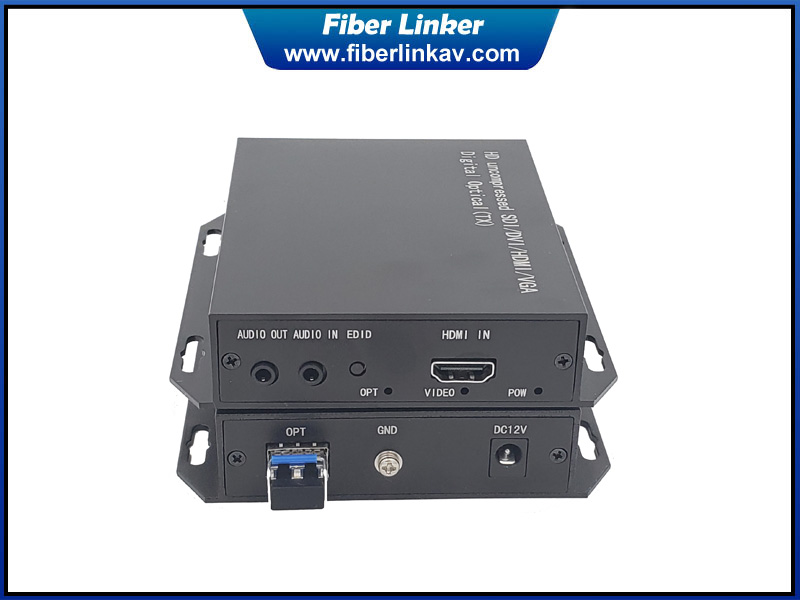

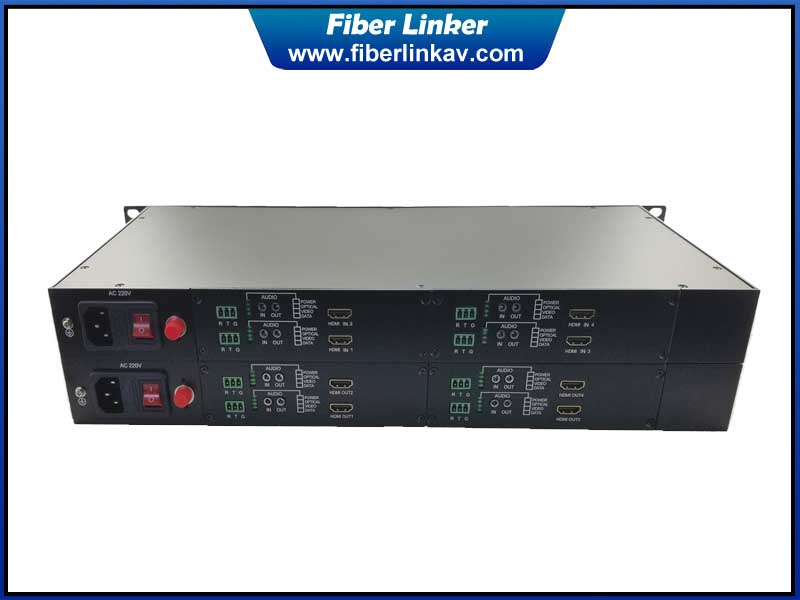

This is a flexible plug-in rack mount for 8-ch HDMI fiber optic extender cards, it also support DVI fiber cards, and HDbaseT card. It is a mixed rack mount with insert cards. user could easily change the mainboard by themselves according to their video and audio transmission requirements. The HDMI fiber cards have HDMI loop in transmitter end and receive end. SFP modules make the fiber box more easy to control, install and maintain.
Features

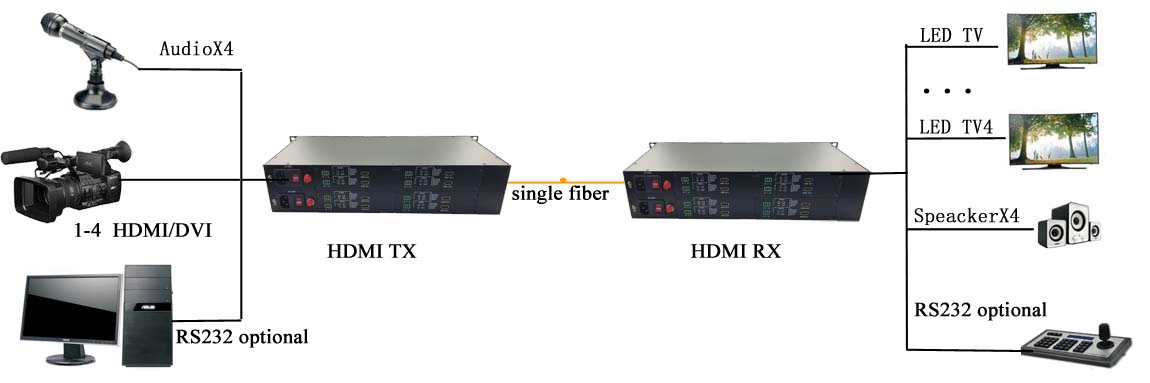

1.8-ch HDMI with loop out in TX and RX end , standard 20KM, optional max 80KM
2. Support video resolution up to 1920*1080P@60Hz, compatible with lower resolution
3. Support mixed insert with other cards like DVI fiber converter and HDbaseT extender
4. Support 8-ch external stereo audio, 3.5mm jack
5. Optional 8-ch RS232 duplex transmission
6. Compliance with HDMI 1.3
7. High compatibility, can auto-match source and display device
8. Built-in automatic adjustment system, make the image smooth, clear and stable
9. Optional CWDM, DWDM multiple HDMI over single core fiber cable
Specification
|
Parameter |
Description |
|
|
Video |
Standards |
HDMI 1.3; |
|
Maximum pixel clock |
165MHz |
|
|
Maximum data rate |
6.75Gbps |
|
|
Resolution |
1920*1080@60Hz 1920*1080@50Hz 1920*1080@30Hz 1920*1080@25Hz 1920*1080@24Hz 1080I@60Hz 1080I@50Hz 1280*720@60Hz 1280*720@50Hz |
|
|
Connector |
HDMI-A |
|
|
Impedance |
100Ω |
|
|
Audio |
Interface |
3.5mm earphone seat |
|
Signal type |
Stereo |
|
|

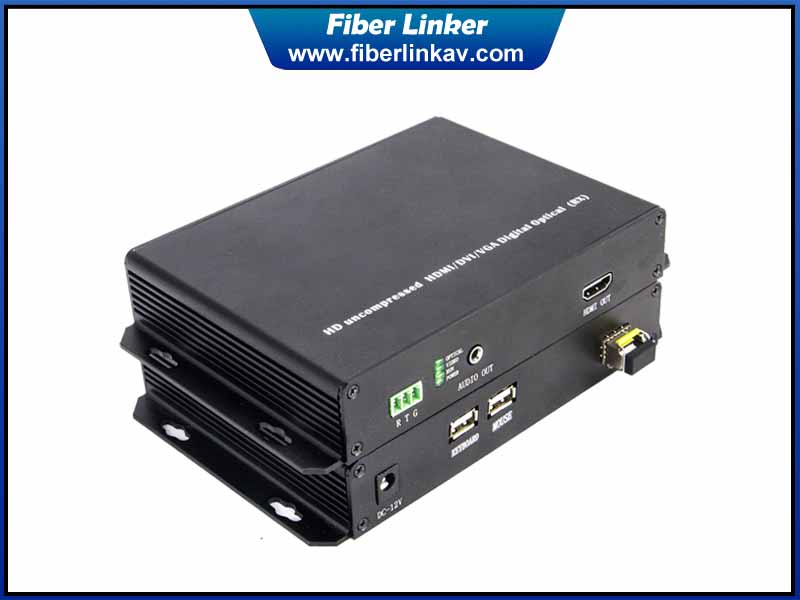

K/M(optional) |
Interface |
To PC: USB3.0 To keyboard and mouse: USB-A |
|
RS232(optional) |
Interface |
Terminal block |
|
Signal direction |
bidirectional |
|
|
Baud rate |
Self-adaptive, Max：115200bps |
|
|
Data bits |
8 |
|
|
Optical fiber |
Interface |
FC/ST connector |
|
Fiber type |
Single-mode single fiber |
|
|
Wavelength |
CWDM wavelength |
|
|
Output power |
+1 to -10dB |
|
|
Transmission distance |
standard 20km |
|
|
Receiving sensitivity |
-6 to -24dB |
|
|
Other |
Power supply |
The power adapter: 110V~240VAC to DC 12V/1A |
|
Power dissipation |
MAX 6W |
|
|
Temperature |
Operating: -30℃ ~ +40℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
standard 1U rack mount |
|
|
The warranty |
3 year free warranty, life-long maintenance |
|
