Description
Description

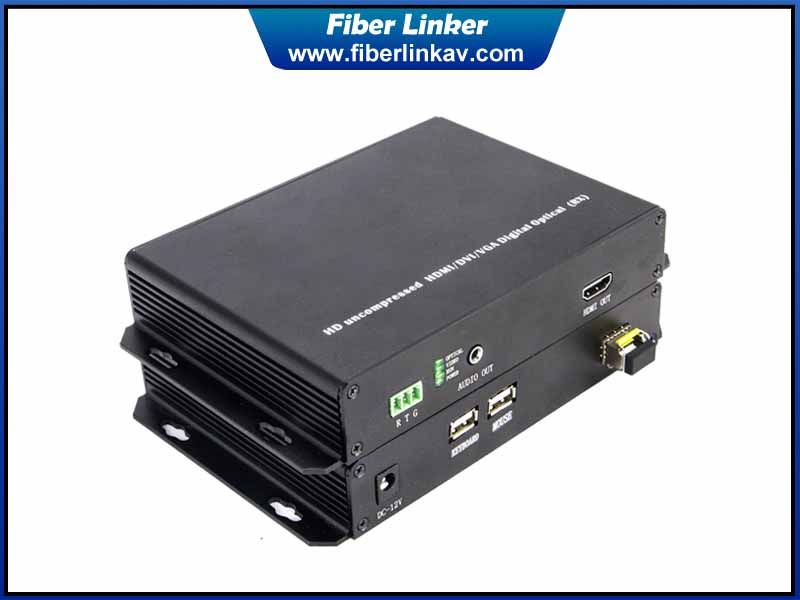

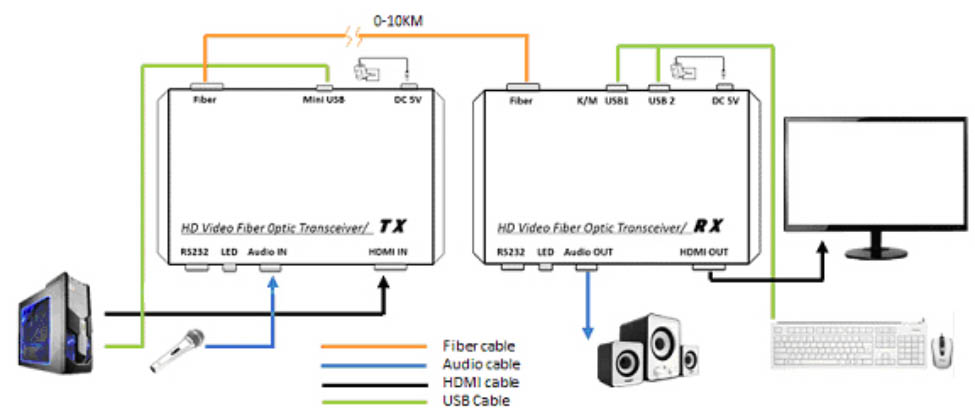

This HDMI Fiber optic extender provides extension of HDMI signals, RS232 duplex data, external audio, USB KVM signals to a long distances over one single core fiber optic cable. It adapts new uncompressed technology solution to make signals transmitted without delay and have good quality picture. USB is transparat transmission that users don't need to install the driver software. We have the insert card rack mount to let customer manage the multiple extenders easily.
Features
1. 1-ch HDMI , standard 20KM
2. Support video resolution up to 1920*1080P@60Hz
3. Support KVM keyboard and mouse
4. Support 1-ch external stereo audio, 3.5mm jack
5. 1-ch RS232 duplex transmission
6. Compliance with HDMI 1.3
7. High compatibility, can auto-match source and display device
8. Built-in automatic adjustment system, make the image smooth, clear and stable
9. Optional CWDM, DWDM multiple HDMI over single core fiber cable
Specification
|
Parameter |
Description |
|
|
Video |
Standards |
HDMI 1.3; |
|
Maximum pixel clock |
165MHz |
|
|
Maximum data rate |
6.75Gbps |
|
|
Resolution |
1920*1080@60Hz 1920*1080@50Hz 1920*1080@30Hz 1920*1080@25Hz 1920*1080@24Hz 1080I@60Hz 1080I@50Hz 1280*720@60Hz 1280*720@50Hz |
|
|
Connector |
HDMI-A |
|
|
Impedance |
100Ω |
|
|
Audio |
Interface |
3.5mm earphone seat |
|
Signal type |
Stereo |
|
|
K/M |
Interface |
To PC: USB3.0 To keyboard and mouse: USB-A |
|
RS232 |
Interface |
Terminal block |
|
Signal direction |
bidirectional |
|
|
Baud rate |
Self-adaptive, Max：115200bps |
|
|
Data bits |
8 |
|
|
Optical fiber |
Interface |
LC connector |
|
Fiber type |
Single-mode single fiber |
|
|
Wavelength |
1310nm,1550nm |
|
|
Output power |
+1 to -10dB |
|
|
Transmission distance |
standard 20km |
|
|
Receiving sensitivity |
-6 to -24dB |
|
|
Other |
Power supply |
The power adapter: DC 12V/1A |
|
Power dissipation |
MAX 6W |
|
|
Temperature |
Operating: -30℃ ~ +40℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
152*114*28mm |
|
|
The warranty |
1 year free warranty, life-long maintenance |
|
