Description
Description

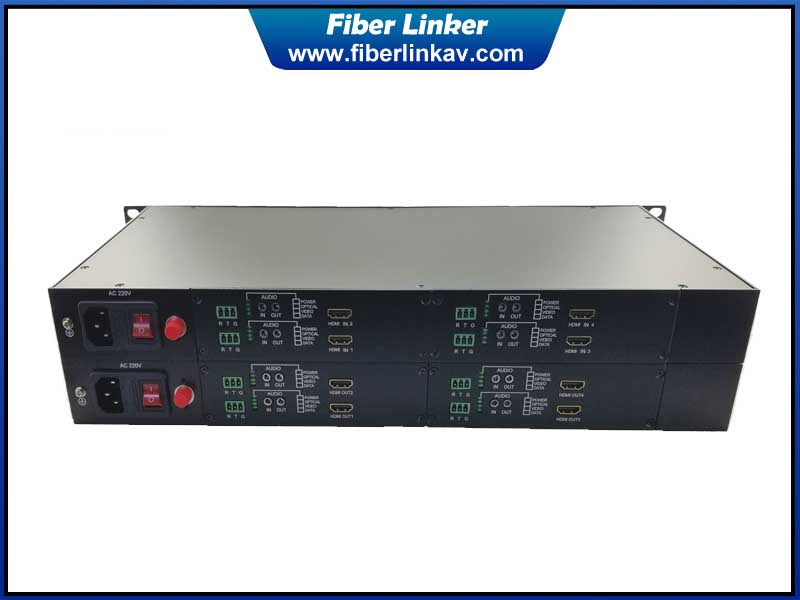

This type of HDMI Fiber optic extender provides 4 channels of 1080P HDMI signals, 4-ch external audio, signals to a long distance over one single core fiber optic cable. Optional duplex RS232 data is supported and it could be optional bidirectional 2-ch HDMI transmission way according to actual use in the transmission field. It adapts new uncompressed technology solution to make signals transmitted without delay and have good quality picture. USB is transparat transmission that users don't need to install the driver software. We have the insert card rack mount to let customer manage the multiple extenders easily.
Features
1.4-ch HDMI , standard 20KM, optional max 80KM
2. Support video resolution up to 1920*1080P@60Hz, compatible with lower resolution
3. Optional 2-ch bidirectional HDMI video, 1-ch bidierectional external audio
4. Support 4-ch external stereo audio, 3.5mm jack
5. Optional 4-ch RS232 duplex transmission
6. Compliance with HDMI 1.3
7. High compatibility, can auto-match source and display device
8. Built-in automatic adjustment system, make the image smooth, clear and stable
9. Optional CWDM, DWDM multiple HDMI over single core fiber cable
Specification
|
Parameter |
Description |
|
|
Video |
Standards |
HDMI 1.3; |
|
Maximum pixel clock |
165MHz |
|
|
Maximum data rate |
6.75Gbps |
|
|
Resolution |
1920*1080@60Hz 1920*1080@50Hz 1920*1080@30Hz 1920*1080@25Hz 1920*1080@24Hz 1080I@60Hz 1080I@50Hz 1280*720@60Hz 1280*720@50Hz |
|
|
Connector |
HDMI-A |
|
|
Impedance |
100Ω |
|
|
Audio |
Interface |
3.5mm earphone seat |
|
Signal type |
Stereo |
|
|
K/M(optional) |
Interface |
To PC: USB3.0 To keyboard and mouse: USB-A |
|
RS232(optional) |
Interface |
Terminal block |
|
Signal direction |
bidirectional |
|
|
Baud rate |
Self-adaptive, Max：115200bps |
|
|
Data bits |
8 |
|
|
Optical fiber |
Interface |
FC/ST connector |
|
Fiber type |
Single-mode single fiber |
|
|
Wavelength |
CWDM wavelength |
|
|
Output power |
+1 to -10dB |
|
|
Transmission distance |
standard 20km |
|
|
Receiving sensitivity |
-6 to -24dB |
|
|
Other |
Power supply |
The power adapter: 110V~240VAC to DC 12V/1A |
|
Power dissipation |
MAX 6W |
|
|
Temperature |
Operating: -30℃ ~ +40℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
standard 1U rack mount |
|
|
The warranty |
3 year free warranty, life-long maintenance |
|
