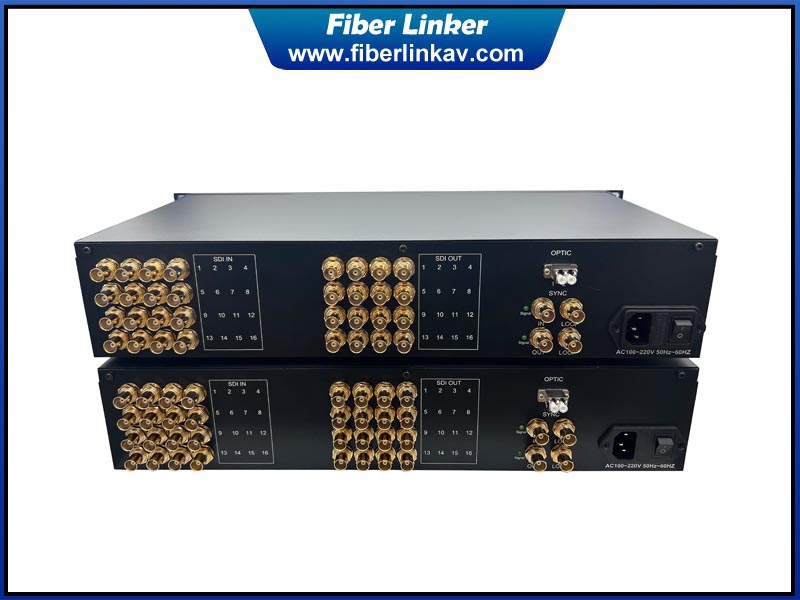

1. Description
Beijing Fiber Linker Co., Ltd has been in video audio transmission system solution for over10 years. Our SDI fiber optic extender has been widely used in our domestic and overseas for broadcast TV transmission system. We could do SDI fiber extender over fiber by CWDM, DWDM and TDM uncompressed solution with data, external audio, Genlock SYNC, Time code, Ethernet, tally and other functions. The fiber connectors could be ST, FC, SC, LC, SMPTE, LEMO type, OpticalCON DUO and others. We welcome any OEM request for SDI over fiber series
2. Features
1.16-ch forward and 16-ch reverse 12G-SDI
2.Support 1-ch bidirectional Genlock
3. Uncompressed CWDM fiber solution
4.Compatible with 6G-SDI, 3G-SDI, HD-SDI, SD-SDI
5.Bandwidth range from 270Mb/s to 11.88Gb/s
6.SMPTE ST 2082-1 (11.88Gb/s) clock recovery
7.SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, ST-2081, ST-2082
8.Support automatic cable equalization based on the data rate detected
9.LED status indicators monitor the critical parameters
10. Dual LC fiber connector, optional ST/FC/Neutrik opticalCON Duo/SMPTE304M/SMPTE311M FXW and EDW connector
11.Support OEM configuration according to actual request
3. Specification
|
SDI Input |
Number |
16 in on TX box, 16 in on RX box |
|
TV signal standard |
SMPTE ST 2082, SMPTE ST 2081, SMPTE ST 424, SMPTE ST 425, SMPTE ST 292, SMPTE ST 259 |
|
|
Reflection loss |
>4DB @12G |
|
|
Equilibrium |
>50M @ 12Gb/s |
|
|
Connector |
75Ω BNC |
|
|
SDI Output |
Number |
8 in on TX box, 8 in on RX box |
|
Signal level |
800mV nominal |
|
|
Rise/fall time |
<135ps @3G-SDI ,<80ps @6G UHD-SDI <45ps @12G UHD-SDI |
|
|
Overshoot |
<10% amplitude |
|
|
Reflection loss |
> 15dB |
|
|
Jitter |
< 0.5UI |
|
|
Connector |
75Ω BNC |
|
|
Genlock |
BNC Connector |
1-ch forward and 1-ch reverse Genlock, compatible with Tri-level and BB |
|
Fiber Optic |
Channel |
1 |
|
Type/Distance |
Single-mode/10KM standard |
|
|
Wavelength |
CWDM |
|
|
Connector |
FC /ST/LC/SC, optional SMPTE LEMO |
|
|
Output Power |
About +3 dB to -5dB |
|
|
Receiver sensitivity |
Standard 10KM, 20KM optional |
|
|
Power and Environmental |
Operating temperature |
-40℃～＋45℃ |
|
Power Supply |
110 to 245VAC |
|
|
Power Consumption |
About 12W |
|
|
EMI/RFI |
FCC Part 15 Class A, EU EMC standard |
|
|
MTBF |
>100000 hours |
|
|
Other |
Size |
1U rack mount |
|
Weight |
10Kg (TX+RX） |

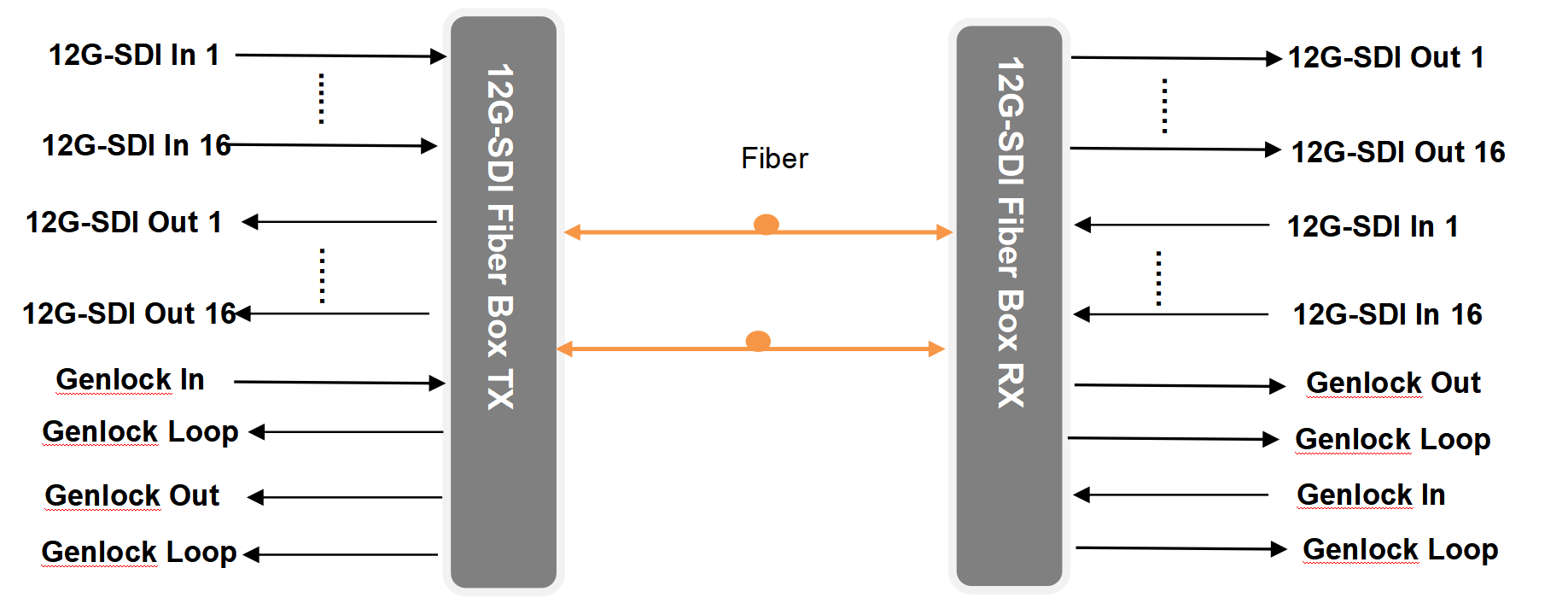

4. Diagram
