Description

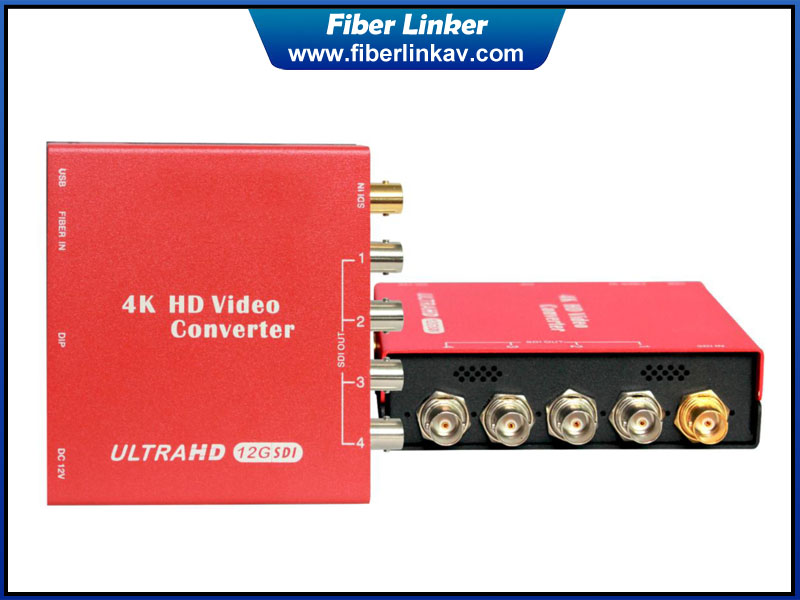

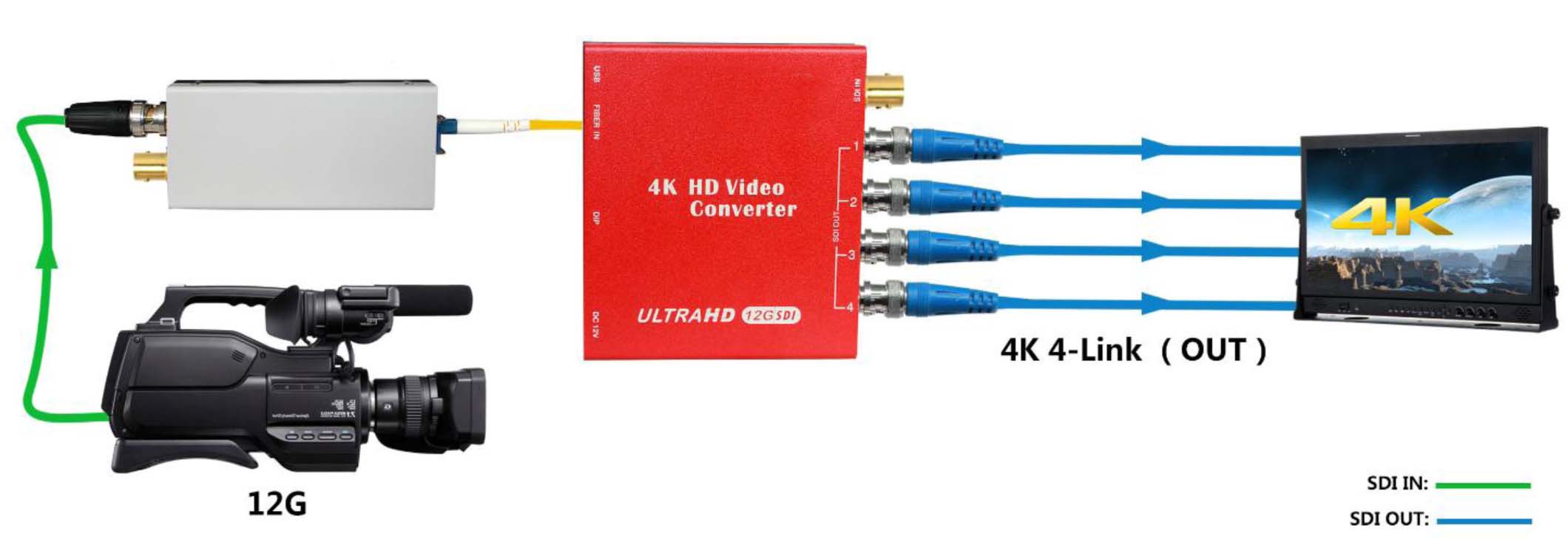

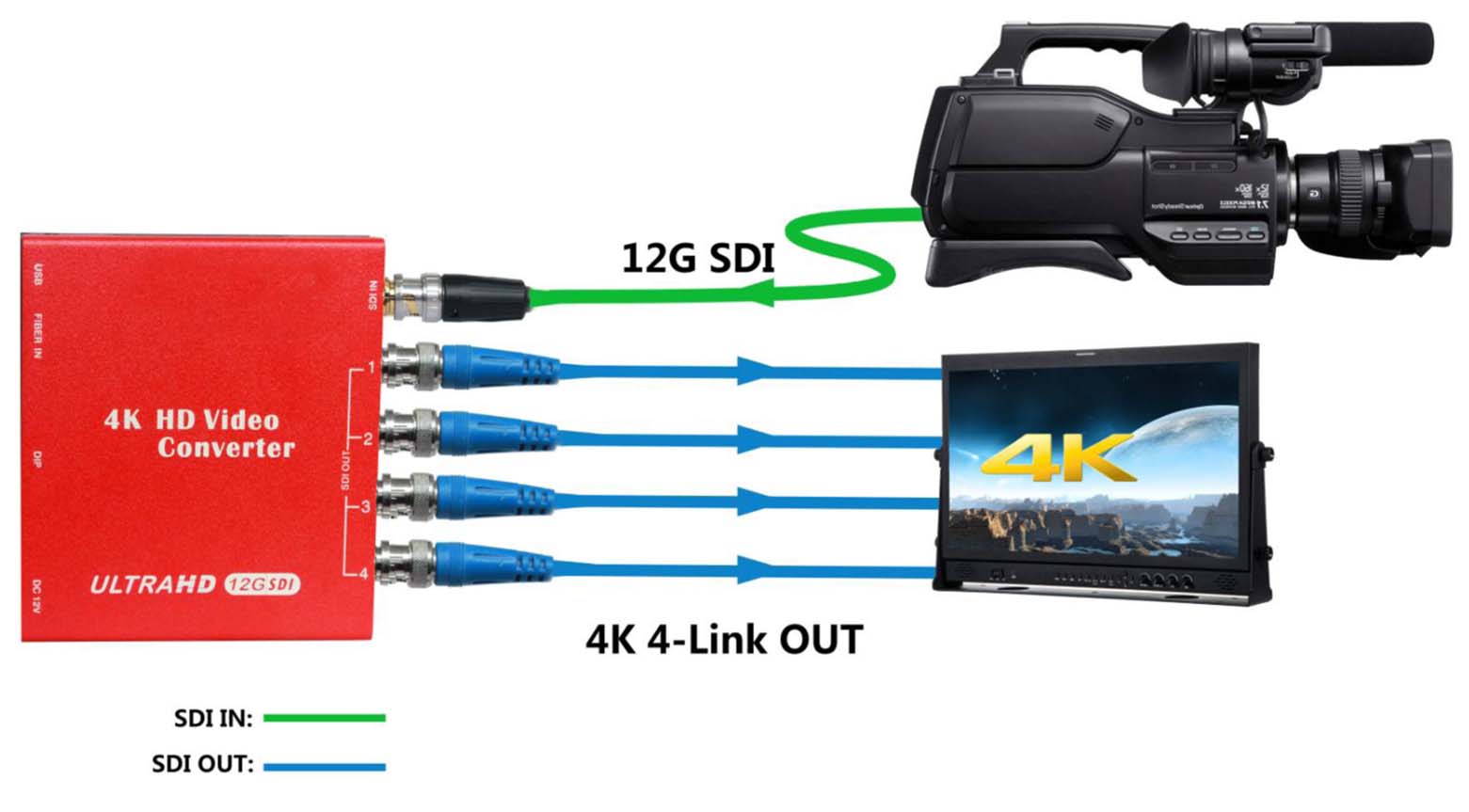

4K 12G-SDI signal demux converts single link 12G-SDI video to 4-link 3G-SDI signals or converts single fiber optical channel to 4X3G-SDI based on broadcast quality level. This 12G-SDI converter also could support to convert 6G SDI signal into 4-link 1.5G-SDI signal. The demux/converter has built-in 12G-SDI equalization, serial clock recovery and line driver. It could be a 4X3G-SDI fiber receiver when being used with 12G-SDI mux in a optical transmission network. It can be applied to professional SDI video signals such as UHDTV/FHDTV/HDTV/SDTV, especially for link multiplexing of broadcast-grade ultra-high definition digital signals.
Features
1.1 channel single link 12G-SDI signal input
2.1 channel LC/SFP input( DIP switch)
3.4X3G-SDI output
4.Compatible 6G-SDI to 4X1.5G-SDI
5.Max resolution 4K@60Hz
6.Built-in clock recovery function
Specification
|
SDI Input |
Input signal |
6G/12G signal |
|
Rate |
270MHZ~12GHZ |
|
|
Connector |
BNC comply with IEC169-8 standard |
|
|
Impedance |
75Ω |
|
|
SDI Output |
Output signal |
1.5G/3G SDI signal |
|
Rate |
270MHZ~3GHZ |
|
|
Signal amplitude |
800mV±10% |
|
|
Connector |
BNC comply IEC169-8 standard |
|
|
Impedance |
75Ω |
|
|
Fiber Input |
Input signal |
Fiber signal |
|
Rate |
100MHZ~12GHZ |
|
|
Connector |
Standard LC |
|
|
Impedance |
100Ω |
|
|
Input signal |
Fiber signal |
|
|
Power and Environmental |
Power |
DC 12V |
|
Size |
105.3*105.2*29mm |
|
|
Control panel |
NO |
|
|
Working Temp |
0℃~50℃ no condensation |
|
|
Storage Temp |
-20℃~75℃ |
|
|
Work humidity |
20%~70%RH |
|
|
Storage humidity |
0%~90%RH， no condensation |
|
|
DIP Switch |
Number 1 |
1 is SDI input , 0 is fiber input |
|
Number 2 |
reserved |
