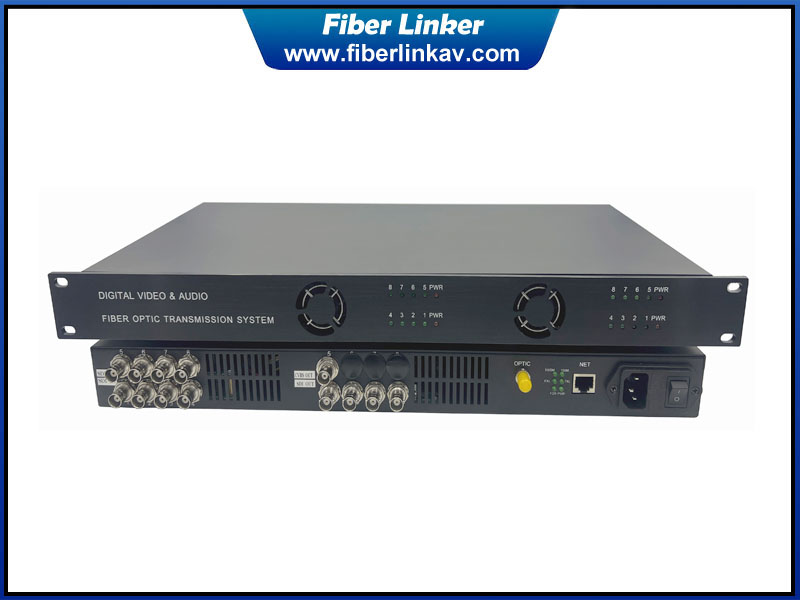

Beijing Fiber Linker Communication Co., Ltd has been in video audio transmission system solution for almost 10 years. This multiple 12G-SDI Extender over Fiber Optic Cable supports CVBS and Ethernet function with bidirectional transmission way. Our SDI fiber optic extender has been widely used in our domestic and overseas for broadcast TV transmission system. We could do SDI extender over fiber by CWDM, DWDM and TDM uncompressed solution with data, external audio Ethernet, tally and other functions. The fiber connectors could be ST, FC, SC, LC, SMPTE, LEMO type. We welcome any OEM request for SDI over fiber series.
Feature
1. 8-ch forward 12G-SDI and 4-ch reverse 12G-SDI
2. Support 1-ch Gigabit Ethernet, 1 reverse CVBS
3. Compatible with 6G-SDI, 3G-SDI, HD-SDI, SD-SDI
4. Bandwidth range from 270Mb/s to 11.88Gb/s
5. SMPTE ST 2082-1 (11.88Gb/s) clock recovery
6. SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, ST-2081, ST-2082
7. Support automatic cable equalization based on the data rate detected
8. LED status indicators monitor the critical parameters
9. Single core fiber cable, optional FC, ST, 10KM.
10. Optional supporting broadcast pathological signal
11. Support OEM configuration according to real requirement
12. Support CWDM or DWDM solution
Specification
SDI Input
Number
8 input on TX box, 4 input on RX box
TV signal standard
SMPTE ST 2082, SMPTE ST 2081, SMPTE ST 424, SMPTE ST 425, SMPTE ST 292, SMPTE ST 259
Reflection loss
>4DB @12G
Equilibrium
>50M @ 12Gb/s
Connector
75Ω BNC
SDI Output
Number
8 output on RX box, 4 output on TX box
Signal level
800mV nominal
Rise/fall time
<135ps @3G-SDI ,<80ps @6G UHD-SDI
<45ps @12G UHD-SDI
Overshoot
<10% amplitude
Reflection loss
> 15dB
Jitter
< 0.5UI
Connector
75Ω BNC
Ethernet
RJ45 Connector
1-ch 1000M bandwidth
CVBS
BNC connector
1-ch in on RX box, 1-ch out on TX box
Fiber Optic
Channel
1
Type/Distance
Single-mode/10KM standard
Wavelength
CWDM
Connector
FC or ST
Output Power
About +3 dB to -5dB
Receiver sensitivity
Standard 10KM, 20KM optional
Power and Environmental
Operating temperature
-40℃～＋45℃
Power Supply
110 to 245VAC
Power Consumption
About 12W
EMI/RFI
FCC Part 15 Class A, EU EMC standard
MTBF
>100000 hours
Other
Size
1U rack mount
Weight
9Kg (TX+RX）
Application
Remote OB Van/Truck Video Feeds, Broadcast Studio Camera Feeds, TV station/video conference, broadcast live transmission, Medical/Surgical Room Broadcast, Building to Building video conference, video wall controller, commend center.

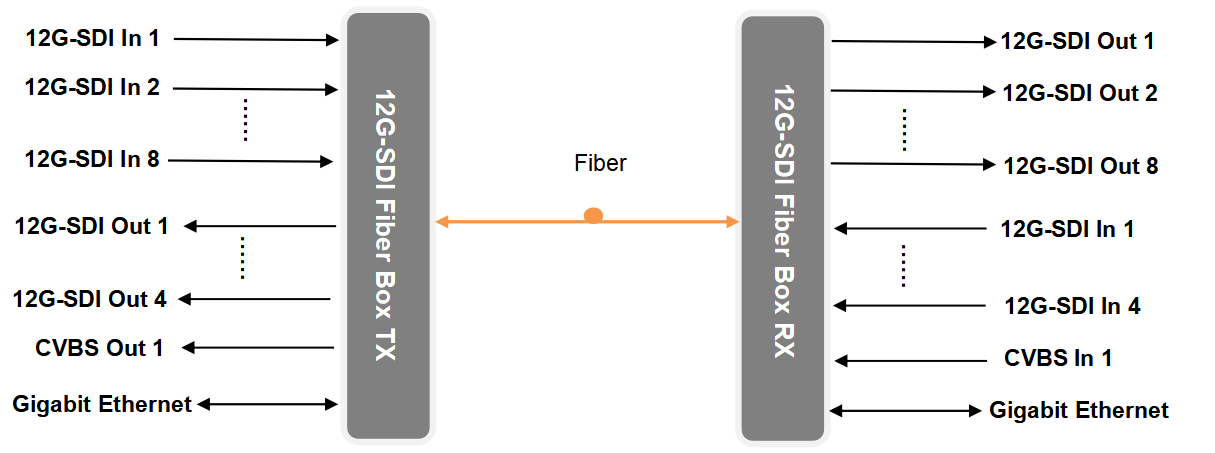

Diagram
