Description

Description

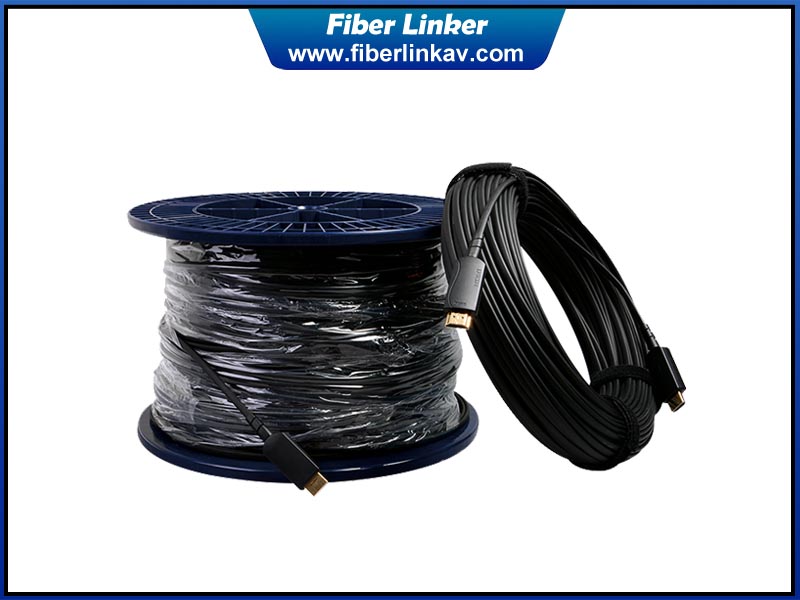

HDMI active optical cable (AOC) is high performance, low power consumption and low cost hybrid fiber optic cable.  Use optical fiber to replace copper wire as the high-speed signal transmission medium. It can perfectly transmit 4k@60HZ UHD HDMI2.0 image up to max 300meters. Compared with the traditional copper wire, AOC is much longer, softer, more slim, with better signal quality and perfect EMI/EMC feature. Compared with other HDMI optical fiber transmission solution, HDMI AOC is easy to use, has perfect compatibility, and no external power supply needed.
Features

1. Supports HDMI resolutions to 4K@60Hz@4:4:4
2. Plug and Play, No need external power supply
3. Compatible with HDMI 2.0 standard.
4. Support HDCP2.2@ARC, support HDR 100meter
5. Self-detecting function for EDID information
6. 18Gbps bandwidth, No loss of signal
7. Hybrid optical cable with fiber and copper wire
8. PIN gold plated, shell gold plated
9. Thinner, lighter and softer than conventional copper cable
10. Operating temperature:-40℃ to 70℃
11. Minimum bending radius 20mm
12. Max tension force: 100N
13. Max transmission length could be 300meter
