Description

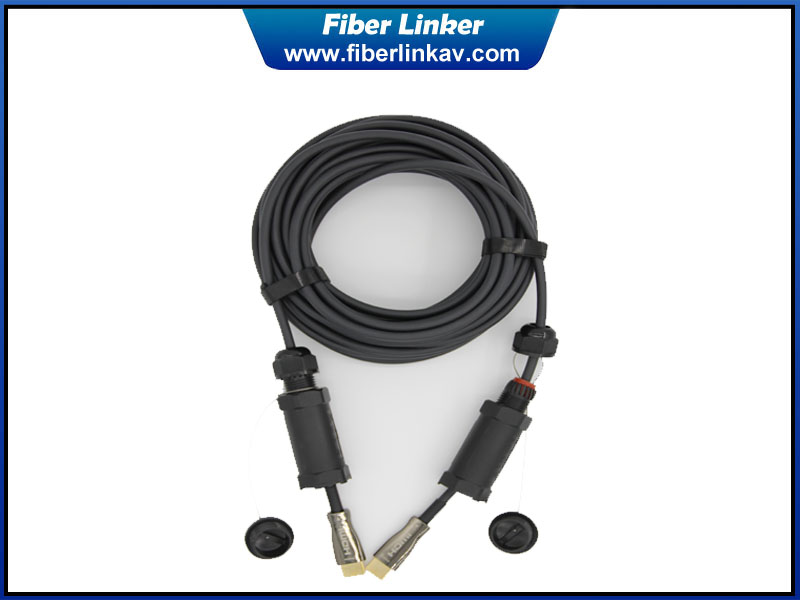

Tactical HDMI Armored Hybrid Fiber Cable is high performance, low power consumption and low cost HDMI AOC cable. This Armoured HDMI Active Optical Cable is the upgraded version to make it use in outdoor activities and harsh environmental applications. This type of HDMI AOC cable with armoured protection is used without external power supply. Plug in and play. 100Meter length could have all HDMI features like ARC, HDR. Max could be 200meter optional without HDR function.
Features&Main specification
1. 4-core fiber + 7core tinned copper
2. 18Gbps bandwidth, 4K/60Hz resolution, compatible with lower
3. Support DHCP 2.2,HDR 10,EDID,CEC,DDC,ARC signal transferring,3D
4. OM3 850 optical fiber is adopted to transmit HDMI 2.0 signals over long distance without attenuation（the longest distance can be 200 meters）
5 Imported arrayon fiber，enhance the tensile performance of optical cable，more suitable for lonog distance cable use
6. With helical steel tape armored protective layer，the cable hai excellent side compression resistance，excellent flexibility and bending performance
7. With good waterproof function，prevent outdoor rain water from entering into the joint ，resulting in electrical defects
8. With good cable pulling function，the cable will not be damaged to the connector internal fiber and copper wire
9. Before cable'installation，twist the front and rear cover，distinguish the Source end and Display end of the internal connector
10. Thinner, lighter and softer than conventional copper cable
11. Operating temperature:-40℃ to 70℃
Aplication
Broadcast camera feed. Home theater. Video wall transmission system. HD video conference. Shopping center LED.
Teaching room video system. HD projection system. Digital signage transmission. CCTV surveillance system.
Cable Structure Drawing
