Description

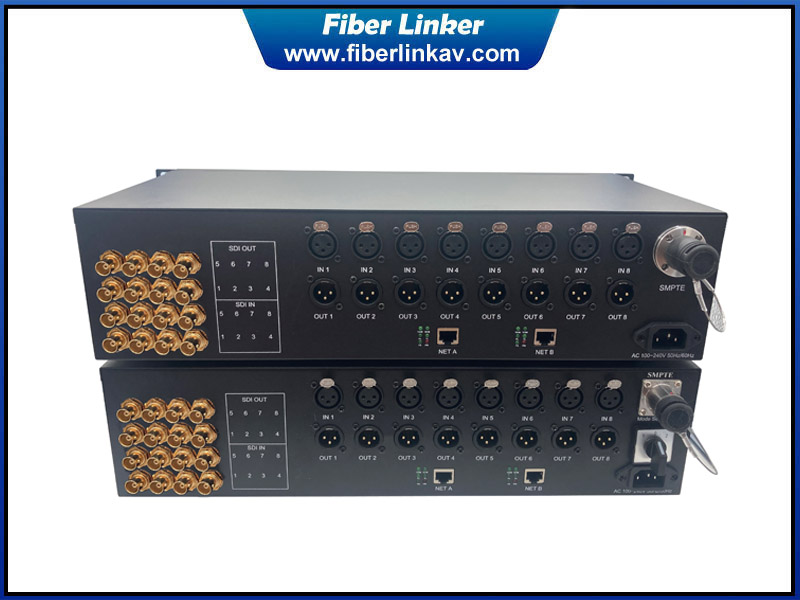

Fiber Linker company has been in video audio transmission system solution for over 10 years. This 12G-SDI fiber converter support 8-ch bidirectional 12G-SDI video signal with 8-ch bidirectinal XLR analog line audio and Ethernets over FXW and EDW connector. SDI SMPTE FXW box support remote power supply to SDI SMPTE EDW box over a long FUW-PUW HDTV hybrid fiber cable. Our SDI fiber optic extender has been widely used overseas for Obvan transmission, TV television, live production and other broadcast projects. We could do SDI extender over fiber by CWDM, DWDM and TDM uncompressed solution with data, external audio Ethernet, tally, SYNC, Genlock and other functions. The fiber connectors could be ST, FC, SC, LC, SMPTE, LEMO type.
Features

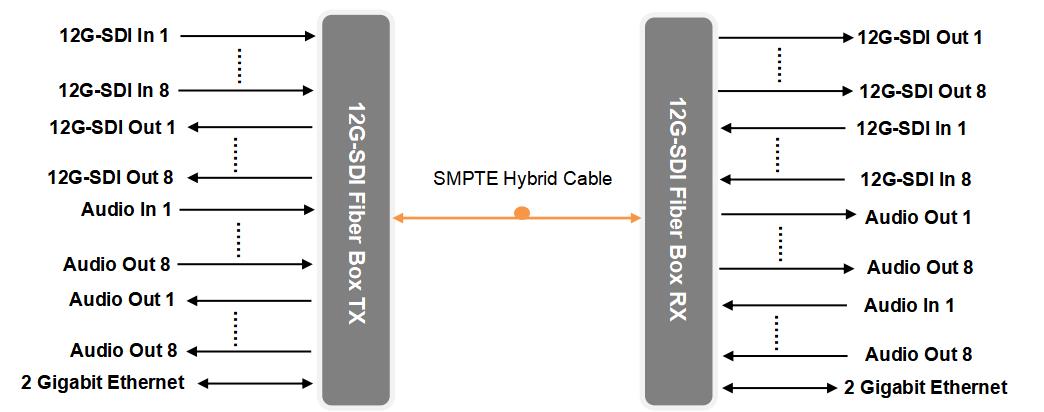

1.8-ch forward 12G-SDI and 8-ch reverse 12G-SDI
2.Support 2-ch Separate Gigabit Ethernet
3.Support 8 forward and 8 reverse analog line audio
4.Compatible with 6G-SDI, 3G-SDI, HD-SDI, SD-SDI
5.Bandwidth range from 270Mb/s to 11.88Gb/s
6.SMPTE ST 2082-1 (11.88Gb/s) clock recovery
7.SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, ST-2081, ST-2082
8.Support automatic cable equalization based on the data rate detected
9.LED status indicators monitor the critical parameters
10.SMPTE304M/SMPTE311M FXW and EDW connector
11.Support remote power supply from EDW to FXW end
12.Support OEM configuration according to real needs
13.Optional CWDM or DWDM solution
Specifications
|
SDI Input |
Number |
8 input on TX box, 8 input on RX box |
|
TV signal standard |
SMPTE ST 2082, SMPTE ST 2081, SMPTE ST 424, SMPTE ST 425, SMPTE ST 292, SMPTE ST 259 |
|
|
Reflection loss |
>4DB @12G |
|
|
Equilibrium |
>50M @ 12Gb/s |
|
|
Connector |
75Ω BNC |
|
|
SDI Output |
Number |
8 output on RX box, 8 output on TX box |
|
Signal level |
800mV nominal |
|
|
Rise/fall time |
<135ps @3G-SDI ,<80ps @6G UHD-SDI <45ps @12G UHD-SDI |
|
|
Overshoot |
<10% amplitude |
|
|
Reflection loss |
> 15dB |
|
|
Jitter |
< 0.5UI |
|
|
Connector |
75Ω BNC |
|
|
Ethernet |
RJ45 Connector |
2-ch Separate 1000M bandwidth |
|
Audio |
XLR connector |
8-ch bidirectional analog balance audio |
|
Fiber Optic |
Connector |
3K.93C FXW and EDW |
|
Type/Distance |
800meter with SMPTE hybrid fiber cable |
|
|
Wavelength |
CWDM |
|
|
Pure Fiber Distance |
10KM |
|
|
Output Power |
About +3 dB to -5dB |
|
|
Fiber Loss |
4 dB |
|
|
Power and Environmental |
Operating temperature |
-40℃～＋45℃ |
|
Power Supply |
110 to 245VAC and remote power supply |
|
|
Power Consumption |
About 12W |
|
|
EMI/RFI |
FCC Part 15 Class A, EU EMC standard |
|
|
MTBF |
>100000 hours |
|
|
Other |
Size |
2.5U rack mount |
|
Weight |
11Kg (TX+RX） |
