Description

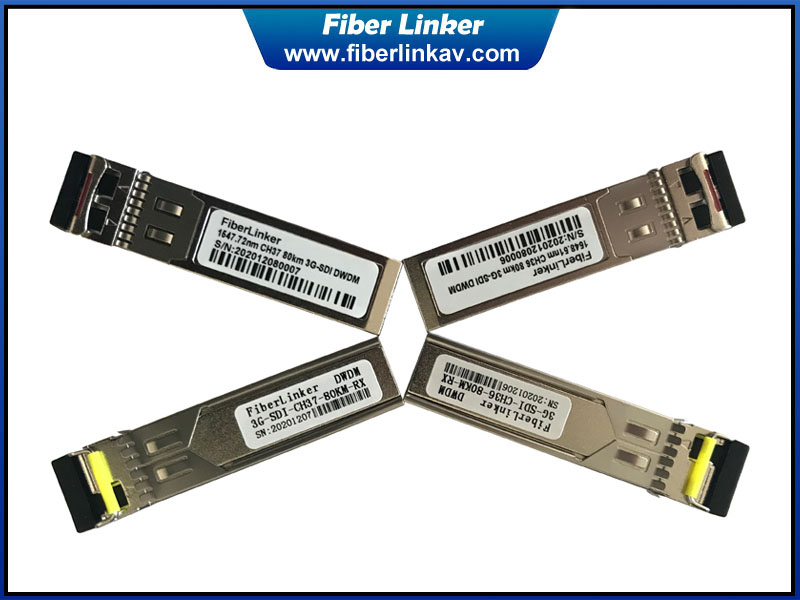

The 3G-SDI SFP Optical Module is designed to transmit data rates from 50Mbps to 2.97Gbps and is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rates. The module is fully compliant with SMPTE 297M-2006. The transmitter is consists of two sections: a CWDM or DWDM DFB laser transmitter and MCU control unit. All modules satisfy class I laser safety requirements. It is also widely used in CWDM and CWDM MUX/DEMUX SDI EO/OE transmission network system.
The SDI optical transmitter are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA. It is normally used for 3G-SDI fiber converter, HD-SDI fiber optic extender, or SDI CWDM and DWDM transmission system.
Features1. 3Gbps Upstream,HD-SDI SFP Transmitter available, SD-SDI SFP Transmitter available, 3G-SDI SFP Transmitter available
2. 80km Reach MAX. Standard is 20KM, compatible with ASI, TS standard
3. Metal enclosure for Lower EMI
4. Optional CWDM DFB laser or DWDM
5. SMPTE 297-2006 Compatible.
6. Optional video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
7. Compliant with SFP MSA and SFF-8472 with single LC receptacle
8. Digital Diagnostic functions available through the I2C interface
9. Hot-pluggable, Operating case temperature:-40 to +85°C
Optical and Electrical Characteristics
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Notes |
||
|
Transmitter |
||||||||
|
Centre Wavelength |
λc |
xxxx-6 |
xxxx |
xxxx+7.5 |
nm |
|
||
|
Spectral Width (RMS) |
Δσ |
|
|
1 |
nm |
|
||
|
Spectrum Bandwidth(-20dB) |
SMSR |
30 |
|
|
dB |
|
||
|
Average Output Power |
Pout |
2 |
3 |
5 |
dBm |
1 |
||
|
Extinction Ratio |
ER |
8.2 |
|
|
dB |
|
||
|
Optical Rise/Fall Time (20%~80%) |
tr/tf |
|
130 |
180 |
ps |
2 |
||
|
Data Input Swing Differential |
VIN |
350 |
|
1800 |
mV |
3 |
||
|
Input Differential Impedance |
ZIN |
90 |
100 |
110 |
Ω |
|
||
|
TX Disable |
Disable |
|
2.0 |
|
Vcc |
V |
|
|
|
Enable |
|
0 |
|
0.8 |
V |
|
||
|
TX Fault |
Fault |
|
2.0 |
|
Vcc |
V |
4 |
|
|
Normal |
|
0 |
|
0.8 |
V |
4 |
||
Timing and Electrical
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
Bit Rate |
BR |
|
3 |
|
Mbps |
|
Tx Disable Negate Time |
t_on |
|
|
1 |
ms |
|
Tx Disable Assert Time |
t_off |
|
|
10 |
µs |
|
Time To Initialize, including Reset of Tx Fault |
t_init |
|
|
300 |
ms |
|
Tx Fault Assert Time |
t_fault |
|
|
100 |
µs |
|
Tx Disable To Reset |
t_reset |
10 |
|
|
µs |
|
Serial ID Clock Rate |
f_serial_clock |
|
|
400 |
KHz |
|
MOD_DEF (0:2)-High |
VH |
2 |
|
Vcc |
V |
|
MOD_DEF (0:2)-Low |
VL |
|
|
0.8 |
V |
Diagnostics Specification
|
Parameter |
Range |
Unit |
Accuracy |
Calibration |
|
Temperature |
-40 to +85 |
°C |
±2°C |
Internal / External |
|
Voltage |
3.0 to 3.6 |
V |
±3% |
Internal / External |
|
Bias Current |
0 to 100 |
mA |
±10% |
Internal / External |
|
TX Power |
2 to 5 |
dBm |
±2dB |
Internal / External |
