Description

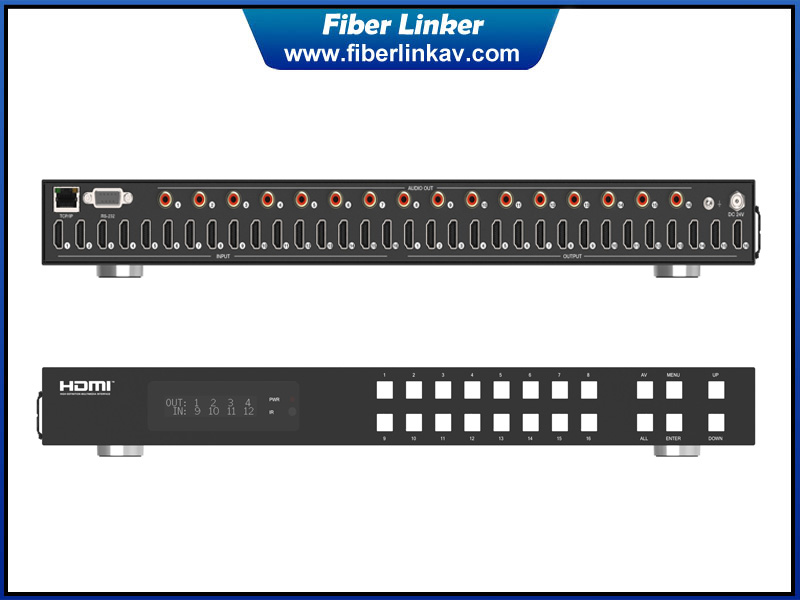

The 18Gbps 16x16 4K@60Hz HDMI2.0 Matrix Switcher supports the transmission of video (resolution up to 4K2K@ 60Hz YUV 4:4:4) and multi-channel high resolution digital audio from 16 HDMI sources to 16 HDMI displays. Audio de-embedded to coaxial audio is supported from 16 HDMI output ports. While HDMI output ARC function is enabled, the ARC audio from HDMI display devices will be extracted to coaxial audio output. Each HDMI output of this 16x16 HDMI Matrix supports 4K2K to 1080P downscaler independently. Control via front panel buttons, IR remote, RS-232, LAN and Web GUI.
Features
HDMI 2.0b, HDCP 2.2/1.x and DVI 1.0 compliant
Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI ports
Support 18Gbps video bandwidth ͚ HDR, HDR10, HDR10+, Dolby Vision and HLG are supported
Support 4K->1080P Down Scaler for each output port
HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
Audio de-embedded is supported via coax ports
ARC, CEC and smart EDID management are supported
1U rack mounted design with front panel OLED display
Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
Specifications
|
Technical |
|
|
HDMI Compliance |
HDMI 2.0b |
|
HDCP Compliance |
HDCP 2.2/1.x |
|
Video Bandwidth |
18Gbps |
|
Video Resolution |
Up to 4K2K@60Hz (4:4:4) |
|
Color Space |
RGB, YCbCr 4:4:4/4:2:2/4:2:0 |
|
Color Depth |
8-bit, 10-bit, 12-bit |
|
HDMI Audio Formats (Pass-through) |
LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
|
Coax Audio Formats |
LPCM 2.0, Dolby Digital / Plus, DTS 5.1 |
|
HDR formats |
HDR10,HDR10+,Dolby Vision, HLG |
|
ESD Protection |
Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
|
Connection |
|
|
Input Ports |
16×HDMI Type A [19-pin female] |
|
Output Ports |
16×HDMI Type A [19-pin female] 16×Coax Audio (RCA) |
|
Control Ports |
1×TCP/IP [RJ45] 1×RS-232 [D-Sub 9] |
|
Mechanical |
|
|
Housing |
Metal Enclosure |
|
Color |
Black |
|
Dimensions |
440mm (W)×200mm (D)×44mm (H) |
|
Weight |
3.1kg |
|
Power Supply |
Input: AC 100 - 240V 50/60Hz, Output: DC 24V/3.75A (US/EU standard, CE/FCC/ULcertified) |
|
Power Consumption |
76.8W |
|
Operating Temperature |
-10°C ~ 45°C / 14°F ~ 113°F |
|
Storage Temperature |
-20°C ~ 60°C / -4°F ~ 140°F |
|
Relative Humidity |
20~90% RH (non-condensing) |
