Description

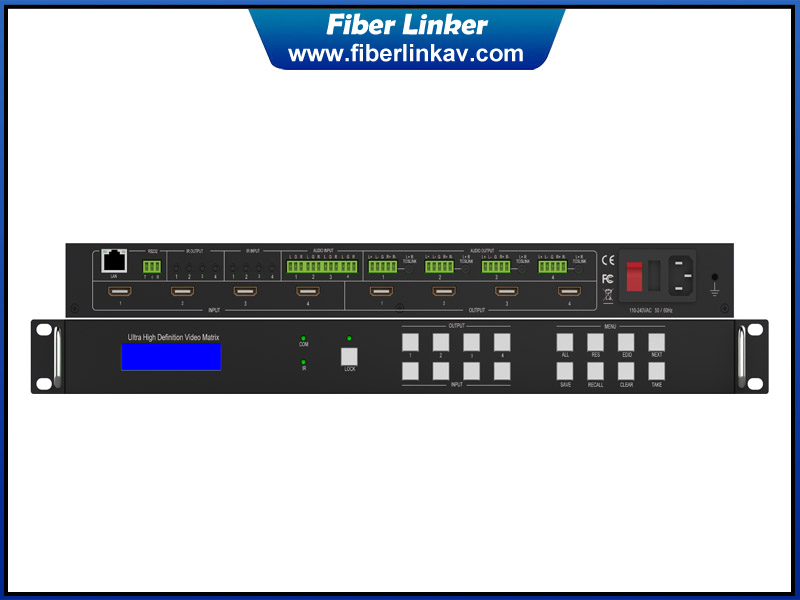

FL4K44H is a high-performance seamless UHD HDMI matrix switcher with 4x HDMI inputs and 4x HDMI outputs. The 18Gbps 4x4 seamless UHD Matrix can connect 4 HDMI sources to 4 HDMI displays. Supported video resolution is up to 4K60 4:4:4. The product supports IR matrix and Audio matrix. IR matrix routing follows the video routing. Audio extract and insert are supported. The product supports CEC management and strong video wall processing
Features4 channel HDMI input and 4-ch HDMI output
HDMI 2.0 and HDCP 2.2 compliant
Support 18 Gbps video bandwidth
Support video resolution up to 4K60 4:4:4
Color space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
Support seamless switching, support video wall function
Support CEC management
Support audio matrix and IR matrix function
Support external L/R audio insert on HDMI stream
Support EDID management
Support front panel, RS232, TCP/IP (LAN 10M/100M) control , web control
Specification
|
Technical |
|
|
HDMI Compliance |
HDMI 2.0 |
|
Video Bandwidth |
18Gbps |
|
Video Resolution |
Up to 4K60 4:4:4 |
|
Color Space |
RGB YCbCr 4:4:4/4:2:2 |
|
HDMI Amplitude |
T.M.D.S +/- 0.4Vpp |
|
Differential Impedance |
100±15ohm |
|
ESD Protection |
Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
|
RS232/Ethernet Control |
|
|
Baud rate and Protocol |
Baud rate: 9600, data bit: 8 Stop bit: 1, no parity checking |
|
Ethernet |
IE10.0+,HTML5 |
|
Mechanical |
|
|
Housing |
Metal Enclosure |
|
Color |
Black |
|
Dimensions |
430mm (W)×220mm (D)×44mm (H) |
|
Weight |
5Kg |
|
Power Supply |
AC 110 - 240V |
|
Power Consumption |
60W (Max) |
|
Operating Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
|
Storage Temperature |
-20°C ~ 70°C / -4°F ~ 158°F |
|
Relative Humidity |
10%~50% RH (non-condensing |
Digital FPDs, PDPs and projectors for medical appliances, aero, traffic control, factory, and bank
Digital FPDs and projectors in conference room and auditorium
Kiosk with digital FPDs showing full motion graphic displays from remote systems
PDP displays for information in public sites
LED signboards in streets and in stadiums

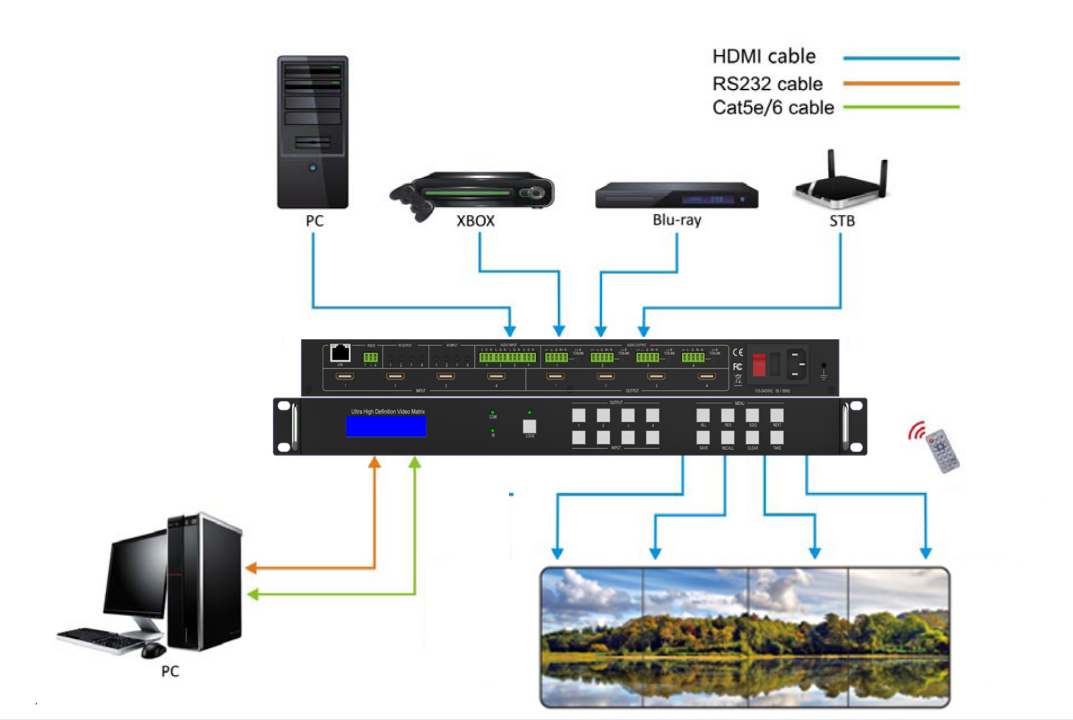

Diagram
