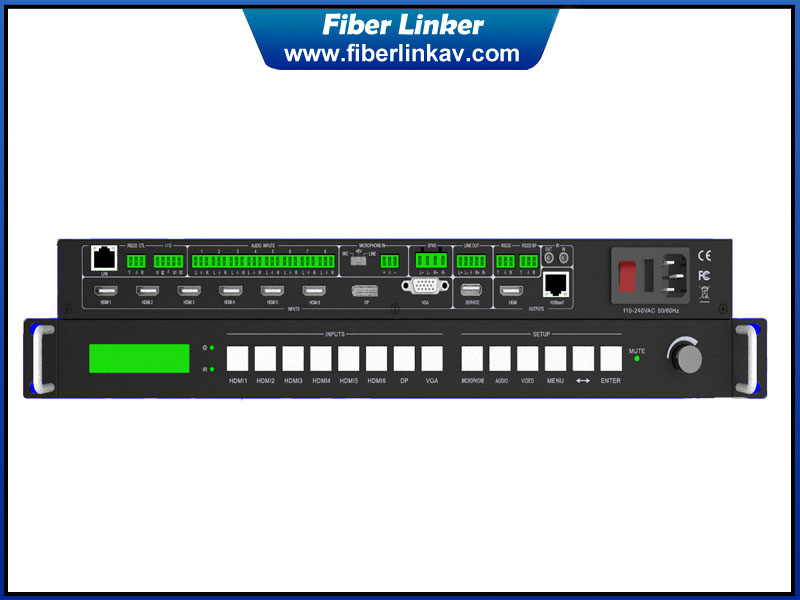

This 4K HDMI matrix is a high-performance seamless Ultra HD presentation switcher with multi-format signal handling. This device scales the video, extract or embed the audio, and outputs the signal through one HDMI port and one HDBaseT port. For Audio out, there are 2x20W speaker output and balanced stereo audio output. This 4K HDMI switcher is seamless switching function which could have better visual experience. It is widely used in presentation room, command control room, video conference room, teaching room and other audio visual transmission projects.
Feature
Seamless switching
Support HDMI 2.0,HDCP 2.2,DP 1.2
Mirrored output with HDMI and HDBaseT output ports
HDBaseT transmission, 70 meters/1080P@60 and 45 meters/4K@60
8 video inputs – 6 HDMI ports, 1 DP port, 1 VGA port
9 audio source selections (LR1 to LR8 and embedded audio) for HDMI/DP input
8 Audio source selections (LR1 to LR8 ) for VGA video input
Microphone mixing or stand alone function
3 Microphone modes, 48V (Phantom supply)/Mic/Line
2x20W speaker output and balanced audio output
Speaker and Microphone volume can be controlled by front panel or PC Tool
Front panel,RS232,TCP/IP (LAN 10M/100M) control
IR IN/OUT,RS232 IN/OUT superimposed on HDBaseT transmission
EDID management，out resolution selection
Additional IO function (2 outputs,2 inputs)
Note, When VGA input, there is no seamless switching for this source
Specification
|
Interface |
HDMI-A, DB-15, Screw Connectors, RJ45, Display Port |
|
HDMI /DP /VGA Version |
HDMI2.0,HDCP2.2,DP1.2,VESA |
|
Bandwidth |
18Gbps |
|
Video Resolution |
|
|
Input |
800x600@60Hz,1024x768@60Hz, 1280x768@60Hz,1280x800@60Hz, 1280x1024@60Hz,1360x768@60Hz,1366x768@60Hz,1400x1050@60Hz, 1440x900@60Hz,1600x1200@60Hz,1680x1050@60Hz, 1920x1200@60Hz. 480p,576p,720p,1920x1080i,1920x1080p,3840x2160@24Hz/25Hz/30Hz/50Hz/60Hz, 4096x2160@24Hz/25Hz/30Hz/50Hz/60Hz. Note: This Device does not support 4:2:0 Color space |
|
Output |
Auto, 3840x2160@60Hz, 3840x2160@50Hz, 3840x2160@30Hz,1920x1080@60Hz, 1920x1080@50Hz, 1280x720@60Hz, 1024x768@60Hz, 1360x768@60Hz,1600x1200@60Hz, 1920x1200@60Hz, |
|
EDID option |
Auto, Manual,3840x2160@60, 3840x2160@30, 1920x1080@60,1280x720@60,1920x1200@60 |
|
HDMI Amplitude |
T.M.D.S +/- 0.4Vpp |
|
Differential impedance |
100±15ohm |
|
RS232 control Baud rate and protocol |
Baud rate：9600, data bit：8， |
|
stop bit：1,no parity checking |
|
|
Ethernet |
IE10.0+,HTML5 |
|
Max Power Consumption |
60W, 110-240VAC |
|
Mechanical dimensions, Size(mm) |
430(L)X220(W)X44 (H) |
|
Weight |
4Kg |
|
Operating temperature |
0 to 40°C |
|
Storage temperature |
-20 to 70°C |
|
Permissible humidity |
10%-50% |
