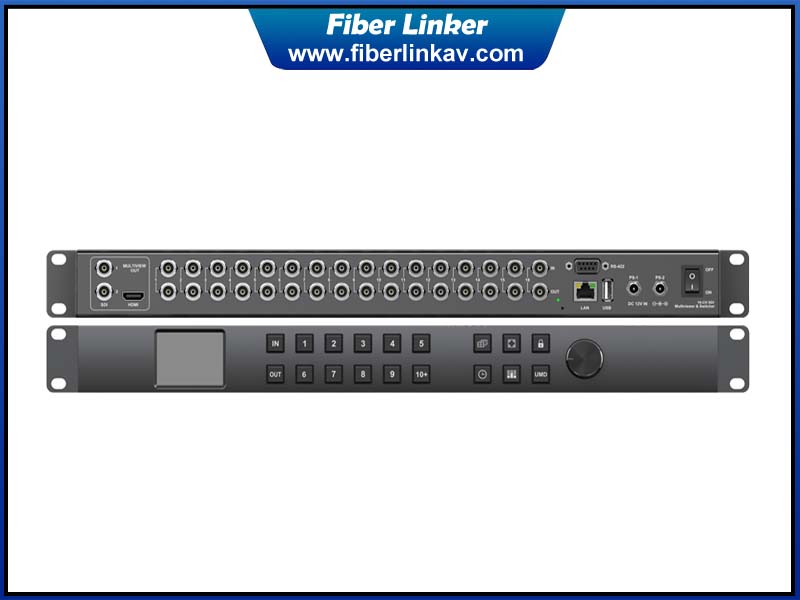

16X16 SDI Matrix Router with multiviewer function is the perfect solution for a large broadcast project. One machine supports two modes, 16 channel SDI multiviewer mode and 16x16 SDI matrix switcher. The input signal detects SD, HD and 3G-SDI automatically. The video format of multiviewer outputs can be selected from total 9 formats from 720p to 1080p. There are 20 preset layouts including 16/12/11/10/9/8/6/4 for choices. You can even SOLO any input signal in full screen through the shortcut key. This product also supports UMD, audio meter, signal status and time code overlay. All functions can be quickly controlled by the PC software or front panel button & knob.
Features
1.Dual modes: 16-ch multiviewer and 16X16 matrix switcher
2.16X3G-SDI auto-detected inputs
3.2x3G-SDI & 1x HDMI multiview scaling output with audio
4.Full screen, and 20 preset multiview layouts with clock display
5.Time code, UMD, signal status and audio meter overlay
6.Front panel buttons and knob control with LCD display
7.Free PC control software via LAN port
8.Dual power design, redundant power
Specification
SDI Video Input |
16×SD/HD/3G-SDI/DVI-ASI(75Ω BNC) |
SDI Video output |
16+2×SD/HD/3G-SDI/DVI-ASI(75Ω BNC) |
HDMI Video Output |
1×HDMI type A |
SDI input format |
(HD) 1920×1080p60/59.94/50/30/29.97/25/24/23.98 (HD) 1920×1080PsF 30/29.97/25/24/23.98 (HD) 1920×1080i 60/59.94/50 (HD) 1280×720p 60/59.94/50 (HD) 1280×720p 30/29.97/25/24/23.98 (SD) 625i 50, (SD) 525i 59.94 |
SDI compliance |
SMPTE 292M, SMPTE 259M, SMPTE 424M, SMPTE352M, SMPTE296M |
SDI Color Space and Precision |
YUV 4:2:2/4:4:4, RGB 4:4:4 (SDI inputs) YUV 4:2:2(SDI & HDMI outputs) |
SDI & HDMI Outputs Format |
1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50
|
Audio Setting |
Support audio source, audio meter, 16 channels |
Control |
Front
panel button, |
Updates and Configuration |
LAN(RJ45) |
Power Supply |
PS-1, PS-2, power redundancy |
Voltage Range |
DC 12-24V |
Power Consumption |
36W |
Dimension |
Standard 19” 1 rack unit |
Net Weight |
2.0kg |
Gross Weight |
3.8kg |

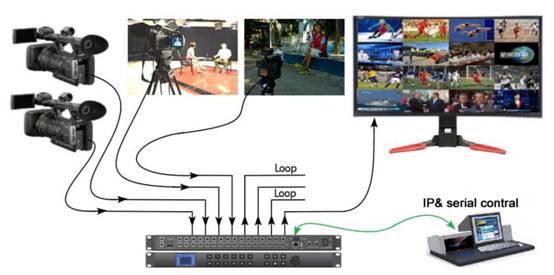

Diagram
