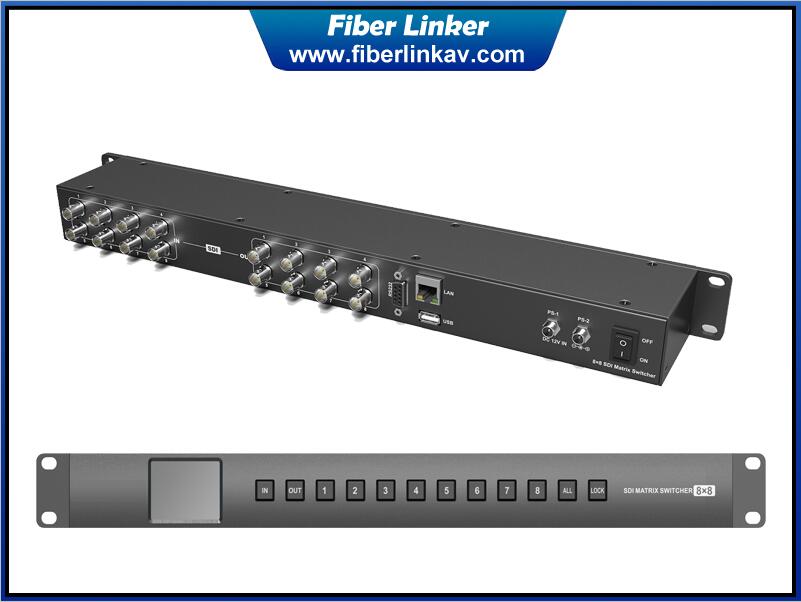

This is 8X8 broadcast quality 3G-SDI matrix switcher. It is compatible with HD-SDI, SD-SDI, DVB-ASI television program stream. It could support all SDI embedded audio/ancillary data. The matrix router is widely used in TV transmission system or video conference projects. It can easily controlled by front panel button, keyboard via USB and PC software over LAN and Data.
Feature
1. Support 8 SDI input and 8 SDI output
2. SDI suppports SMPTE 372M, SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, DVB-ASI3. Support max resolution 2048×1080P30/29.97/25/24/23.98Hz. Compatible with lower standard
4. Automatically detects SD, HD and 3G-SDI
5. Support front panel, USB keyboard, LAN, RS422 data control
6. Dual 12V DC power supply, redundant power
7. Easy operation and reliable for SDI switching.
Specification
|
SDI Video Input |
16×SD/HD/3G-SDI/DVI-ASI(75Ω BNC) |
|
SDI Video output |
16×SD/HD/3G-SDI/DVI-ASI(75Ω BNC) |
|
SDI input format |
(HD) 1920×1080p60/59.94/50/30/29.97/25/24/23.98 (HD) 1920×1080PsF 30/29.97/25/24/23.98 (HD) 1920×1080i 60/59.94/50 (HD) 1280×720p 60/59.94/50 (HD) 1280×720p 30/29.97/25/24/23.98 (SD) 625i 50, (SD) 525i 59.94 |
|
SDI compliance |
SMPTE 292M, SMPTE 259M, SMPTE 424M, SMPTE352M, SMPTE296M |
|
SDI Color Space and Precision |
YUV 4:2:2/4:4:4, RGB 4:4:4 (SDI inputs) YUV 4:2:2(SDI & HDMI outputs) |
|
SDII Outputs Format |
1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50
|
|
Control |
Front panel button, USB Keyboard |
|
Updates and Configuration |
LAN(RJ45) |
|
Power Supply |
PS-1, PS-2, power redundancy |
|
Voltage Range |
DC 12-24V |
|
Power Consumption |
6-24W |
|
Dimension |
Standard 19” 1 rack unit |
|
Net Weight |
2.0kg |
|
Gross Weight |
3.8kg |
