Description
Description

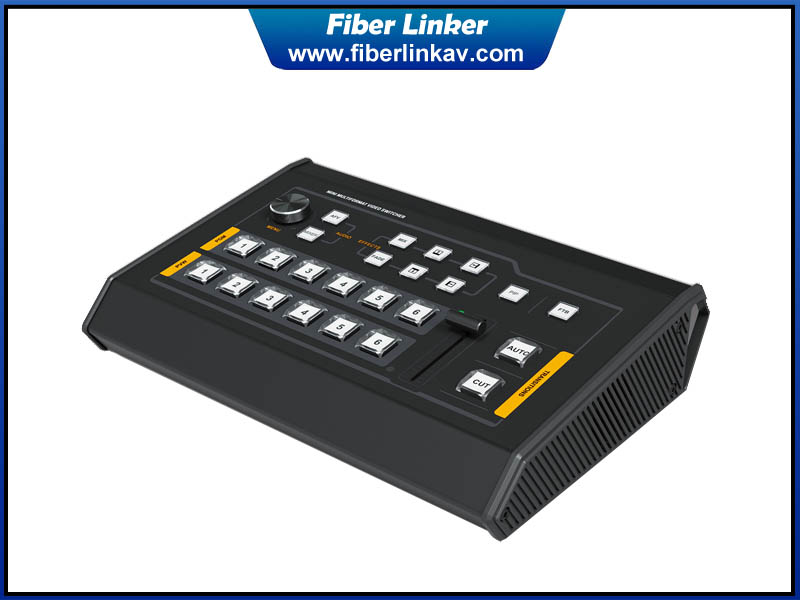

In broadcast systems such as TV program production, live broadcast teaching, and medical live broadcast, the live streaming multiformat matrix switcher is one of the most important components. It is used for image mixing, picture conversion, superimposed subtitles, chroma key processing and other operations. The multiformat broadcast quality matrix switcher selects lines for different video signals of 2 or more video channels. Such matrix mixer is a cost-effective live production switcher and multiview solution for new media live broadcasts in TV station, live sports, remode education, game live, concert event, teleconference and so on.
Main Features

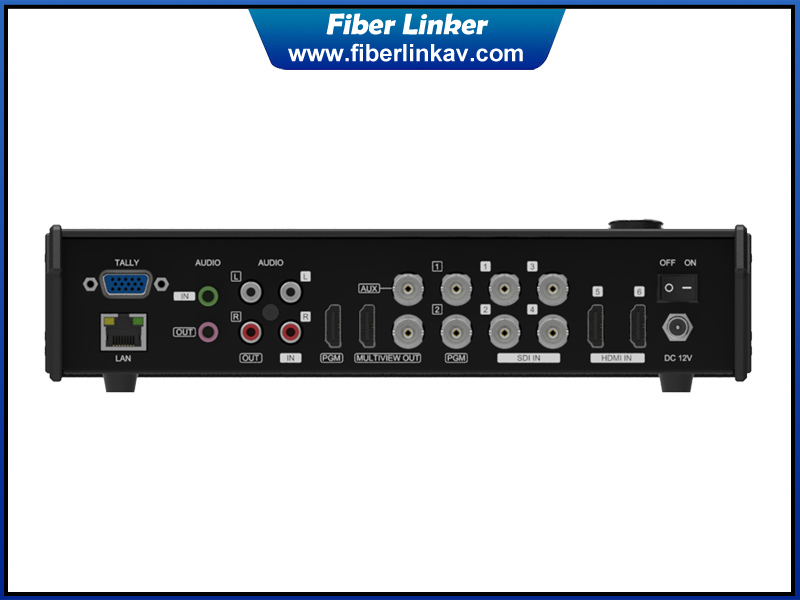

1. 6 channels input intotal, 4-ch SDI and 2-ch HDMI
2. 2xSDI and 1xHDMI PGM outputs, 1XSDI AUX out, 1×HDMI and SDI multiview out
3. T-Bar/AUTO/CUT transitions and MIX/FADE/WIPE effects
4. Auto/ Cut transitions and Mix / Fade / Wipe effects
5. PiP function, adjustable size and position
6. Audio mixer 3.5mm stereo/RCA audio & SDI/HDMI embedded audio
7. GPIO interface for live tally system
8. FTB for emergency situation

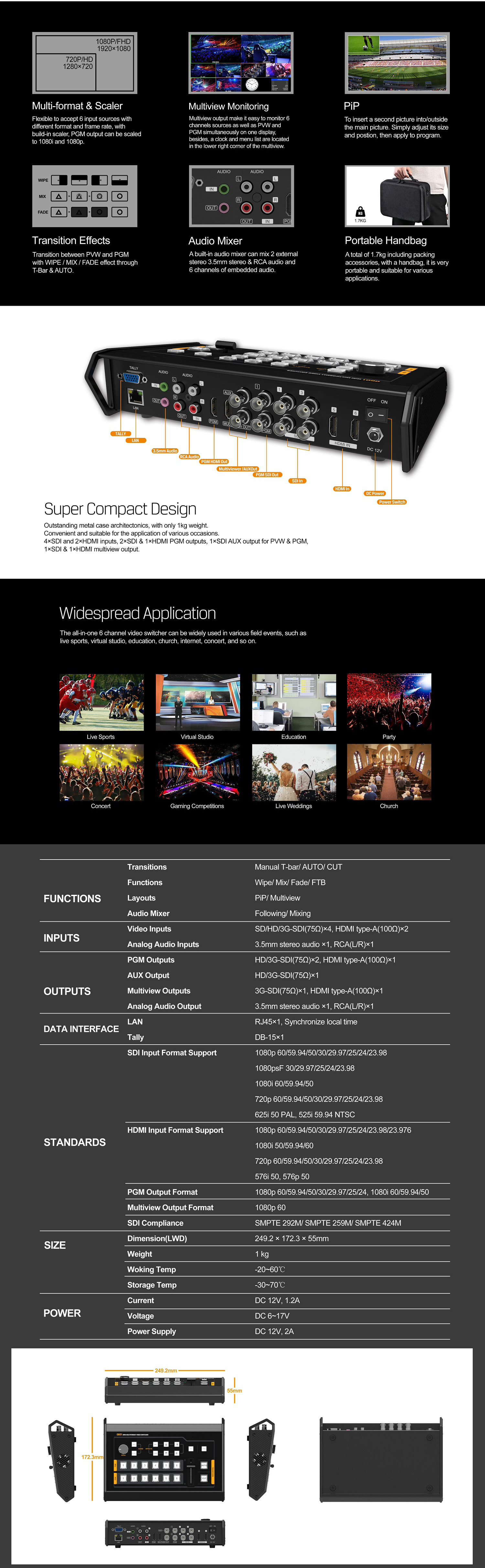

Funtions and Specifications
