Description
Description
In broadcast systems such as TV program production, live broadcast teaching, and medical live broadcast, the live streaming multiformat matrix switcher is one of the most important components. It is used for image mixing, picture conversion, superimposed subtitles, chroma key processing and other operations. The multiformat broadcast quality matrix switcher selects lines for different video signals of 2 or more video channels. Such matrix mixer is a cost-effective live production switcher and multiview solution for new media live broadcasts in TV station, live sports, remode education, game live, concert event, teleconference and so on.
Main Features

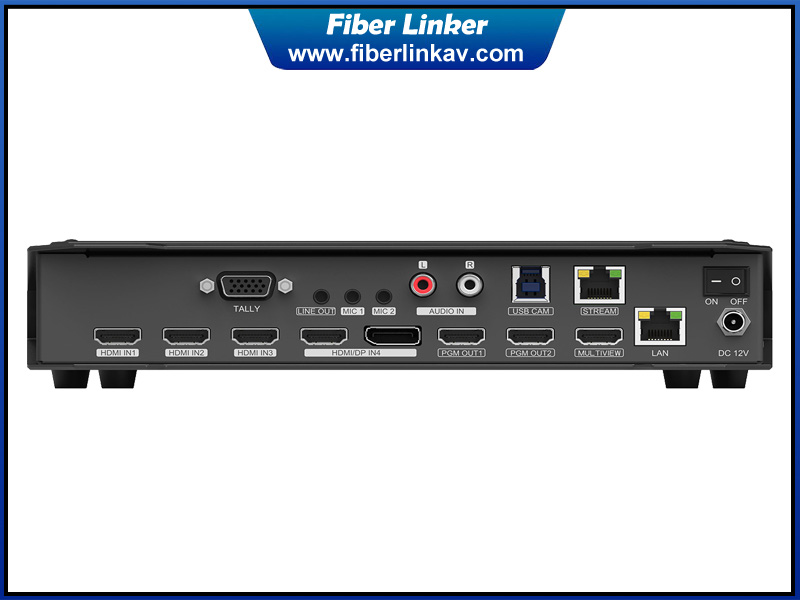

1. two input modes, 4 HDMI input or 3 HDMI input with 1DP input
2. Outputs: 2×HDMI PGM,1×HDMI multiview
3. USB capture video complying with UVC for live streaming
4. Auto/ Cut transitions and Mix / Fade / Wipe effects
5. PiP function, adjustable size and position
6. Audio mixer: 3.5mm stereo / RCA audio & HDMI
7. GPIO interface for live tally system
8. FTB for emergency situation

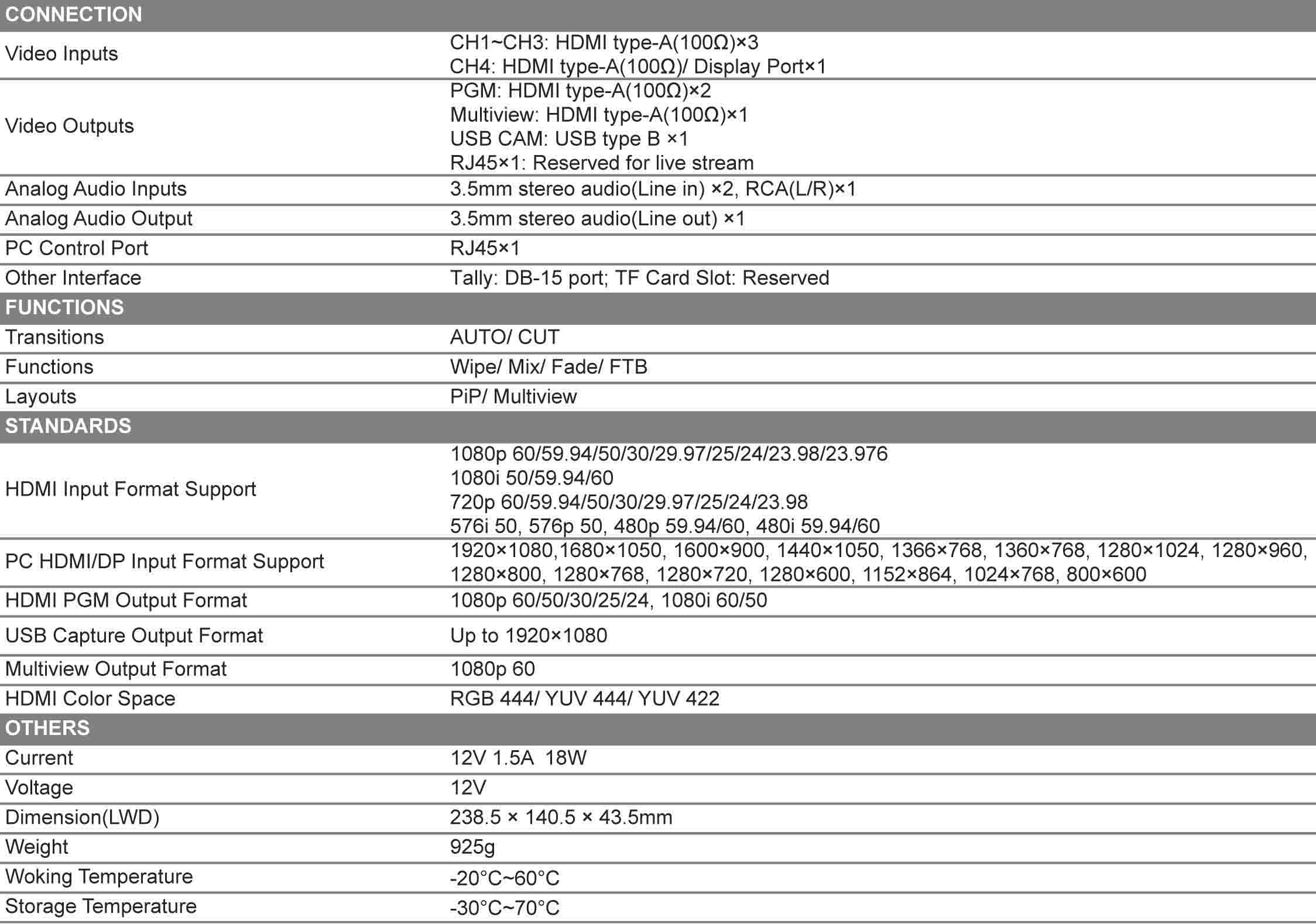

Specification
Main Function

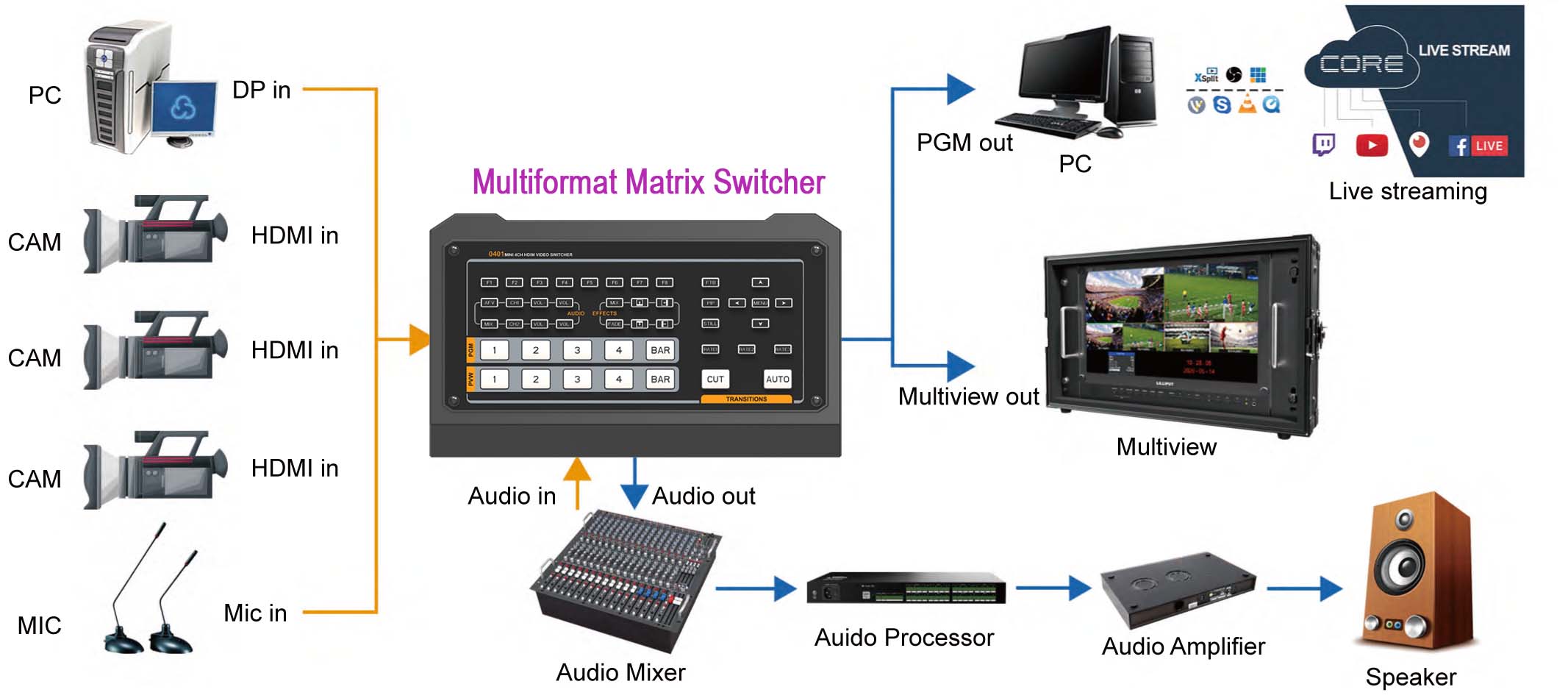

Diagram
