Description

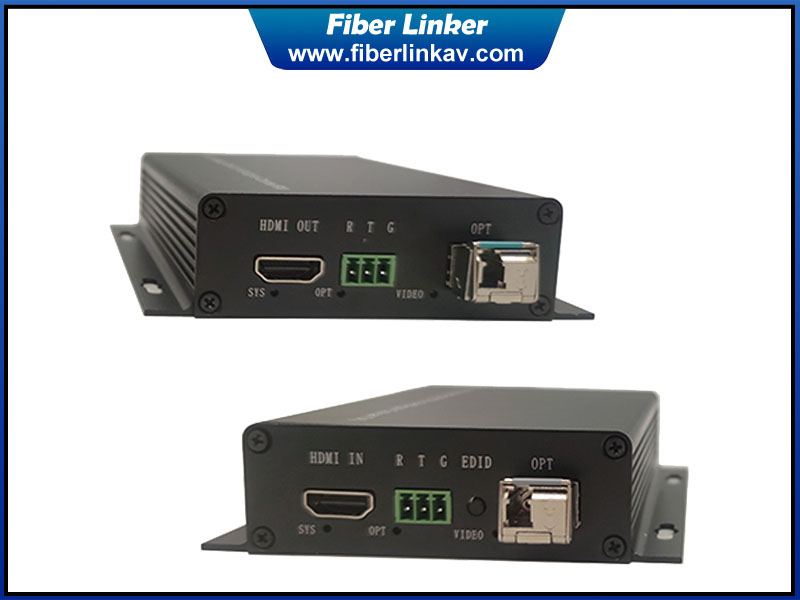

This 4K@60Hz HDMI2.0 fiber optical transport device is made up of HDMI to fiber EO converter and fiber to HDMI OE converter. AS a broadcast level high-definition HDMI fiber optical transceiver, it has 10G bandwidth optical SFP module which realize remote transmission of HDMI multimedia signal. Through SFP module of different transmission distance, it realized the long distance transmission as far as 60KM. This transmission product has no loss, no transmission delay and can meet various requirements of HD long distance transmission. This converter is compatible with 4K@60Hz resoluton of HDMI2.0 version
Fetures
1. Full digital, zero compression and zero delayed
2. Optional RS232
3. Support HDCP standard
4. Support 10Gbps data rate
5. Compatible with HDMI2.0
6. Support 3D
7. Support video resolution up to 4K*2K@60Hz.
8. Support copy EDID.
9. Transmits HDMI video signals up to 60km over one fiber optic cable.
10. Compatible with DVI signal transmission.
11. Simple to install, plug and play.
12. Supports Customization and OEM.
Specification
|
Video Input (Transmitter) |
1xHDMI Type A, 19-pin, female |
|
Video Output (Receiver) |
1xHDMI Type A, 19-pin, female |
|
Maximum Video Bit Rate |
10Gbps |
|
HDMI Format |
4K@60Hz YUV 4:4:4, 1080P, 720P, 576P, 480P/ VESA Resolution |
|
EDID |
Support |
|
Audio Format |
Support LPCM 7.1, Dolby®True HD, DTS-HD Master Audio™ |
|
RS232 |
optional |
|
Wavelength |
1310nm 1550nm |
|
Output Optical Power |
－9.5～－3dBm,average @1310nm |
|
Receiver sensitivity |
－23dBm,average @1310nm |
|
Output Modulation Amplitude |
180μW |
|
Input Modulation Amplitude |
≤15μW |
|
Relative Speed |
-116 DB/Hz |
|
Return Loss |
≤10 dB |
|
Distance |
single mode for 10KM standard, Up to 60KM max optional, multimode 300M |
|
Working Temperature |
|
|
Storage Temperature |
-60℃~+80℃ |
|
Relative Humidity |
0~95%（non condensing） |
|
Size |
110mm x152mm x 30mm |
|
Power Supply |
12V@1A |
