Description
Description

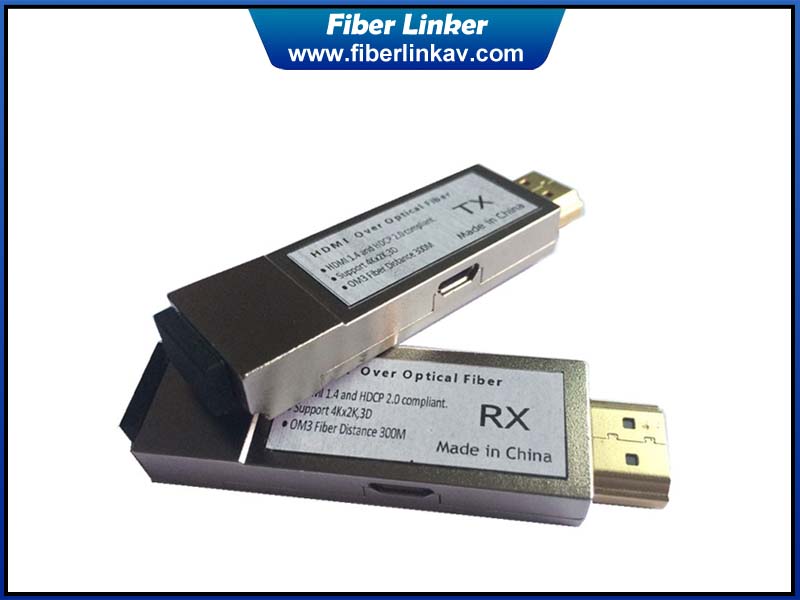

This Mini 4K HDMI Fiber Optic Extender includes a transmitter and a receiver to transmit 4K HDMI digital video to a long distance over dual core fiber cable. It offers graphic TMDS signals to be extensible up to the limits of modal bandwidth of selected OM3 multi-mode glass fibers. The data rate from the –T to –R is 10.2Gb/s with 850nm, compliant HDMI 1.4 standard, It Support resolution is up to 3840*2016/30Hz (YUV 4:4:4) or 3840*2016/60Hz (YUV 4:2:0). It support distance up to 300m over dual core OM3 Multimode optical cable.
Features
1. Miniature Rattler type, plug and play
2. Resolution up to 3840*2160/30Hz(Y:U:V 4:4:4)
3. Support resolution 3840*2160/60Hz(Y:U:V 4:2:0)
4. Extend the HDMI up to 300 meters
5. Support HDCP
6. Support 3D
7. Detachable feature with 2x LC OM3 MM Fiber
8. The modules are compact enough to directly plug to graphic sources and displays by adopting HDMI plugs
9. Micro USB-B power connector;
10. Data security with negligible RFI/EMI emissions and loss of video quality due to no copper conductor present
Specification
Parameter
Specifications
Resolution
4k*2k 30Hz
3840x2160/30Hz (YUV
4:4:4)
4k*2k 60Hz
3840x2160/60Hz.(YUV
4:2:0)
Components
Laser Diodes in Tx Module
850nm FP
laser and 1550nm PIN PD
Diodes in Rx Module
850nm FP
laser and 1310nm PIN PD
single fiber type
Integrated
1310nm/1550nm filter
Electrical
Input and
Output Signals
TMDS
Level (complying with DVI1.0)
Data
Transfer Rate (Graphic Data)
Max.
3.4Gbps
Maximum Pixel Clock Frequency
340Mb/s
Maximum Video Bit Rate
10.3Gb/s
Total
Jitter at the end of Rx output
Max. 309
ps
Skew
inter-channels
Max. 6ns
Optical
Link
Power Budget
Min 8.5dB
Mechanical
Module
dimension (mm)
90X20X25mm
Connector
Optical
Connector
2X LC
connector
Electric
Connector
HDMI plug
Recommended
Fiber
OM3 MMFiber
Extend Distance
300m
Power Supply
5V DC
Working Temperature
-20 to 50℃

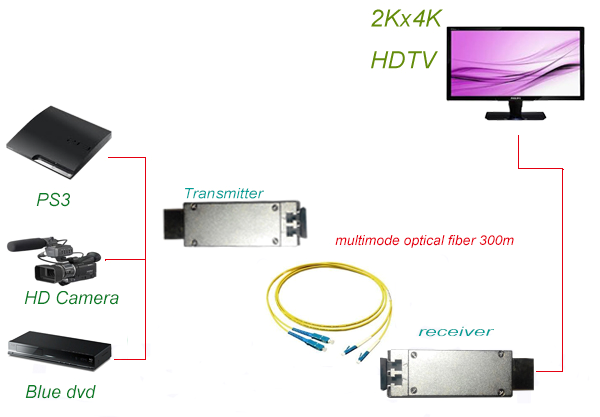

Diagram
