Description
Description

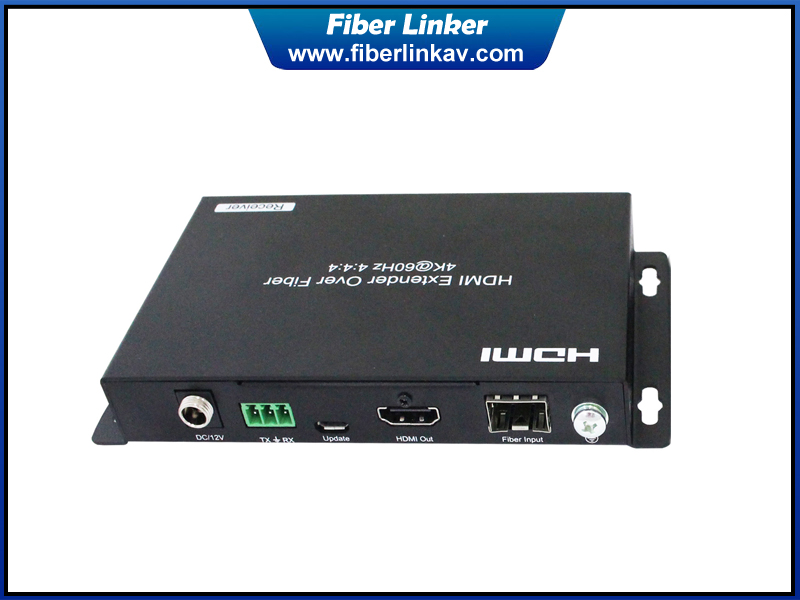

This 4K@60Hz HDMI Fiber Optic Extender includes a transmitter and a receiver to transmit 4K HDMI2.0 digital video to a long distance over fiber cable with SFP module. It could support resolution up to 4kx2k@60hz, YUV4:4:4 HDR. It also could transmit duplex RS232 data over optical fiber cable. Beijing Fiber Linker Communication Co.,Ltd could supply various type of HDMI fiber optic extender with KVM function, IR, external audio, USB3.0 and so on. The extenders are widely used in video conference, video wall system, remote teaching and any other multimedia transmission system
Features
1.Transmit distance up to 60KM
2.fiber module Single /Duplex fiber (Optional) cable
3.Support upto 4kx2k@60hz, YUV4:4:4 HDR
4.Support bandwidth upto 18Gbps
5.Without latency
6.Support HDCP2.2 input, HDCP2.2 output
7.Support HDCP1.4 input, HDCP1.4 output
8.Support RS232 Bi-direction pass through
9.With Automatic EDID
10.Support LPCM 7.1, Dolby®True HD, DTS-HD Master Audio™
11.Locking power supplies
12.Surface-mountable
Specification
|
Video Input (Transmitter) |
1xHDMI Type A, 19-pin, female |
|
Video Output (Receiver) |
1xHDMI Type A, 19-pin, female |
|
Maximum Video Bit Rate |
10Gbps |
|
HDMI Format |
4K@60Hz YUV 4:4:4, 4K@60Hz, 1080P, 720P, 576P, 480P/ VESA Resolution |
|
HDCP |
HDCP 1.4 in, HDCP 1.4 out HDCP 2.2 in, HDCP 2.2 out |
|
Audio Format |
Support LPCM 7.1, Dolby®True HD, DTS-HD Master Audio™ |
|
RS232 |
Supported |
|
Wavelength |
1310nm 1550nm |
|
Output Optical Power |
－9.5～－3dBm,average @1310nm |
|
Receiver sensitivity |
－23dBm,average @1310nm |
|
Output Modulation Amplitude |
180μW |
|
Input Modulation Amplitude |
≤15μW |
|
Relative Speed |
-116 DB/Hz |
|
Return Loss |
≤10 dB |
|
Distance |
single mode for 2KM standard, Up to 60KM max optional, multimode 300M |
|
Working Temperature |
|
|
Storage Temperature |
-60℃~+80℃ |
|
Relative Humidity |
0~95%（non condensing） |
|
Size |
96mm x100 mm x 21mm |
|
Power Supply |
12V@1A |

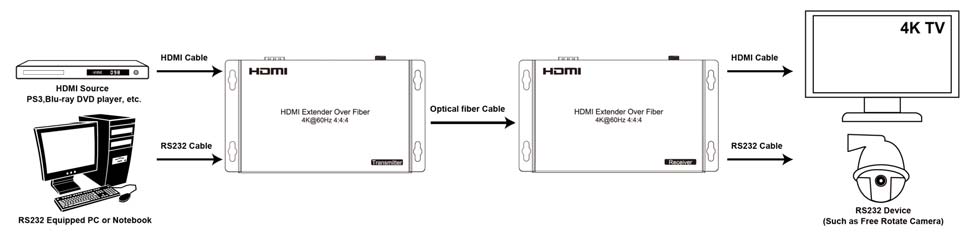

Diagram
