Description

Description

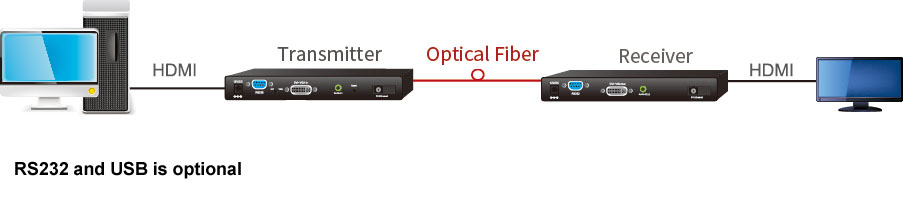

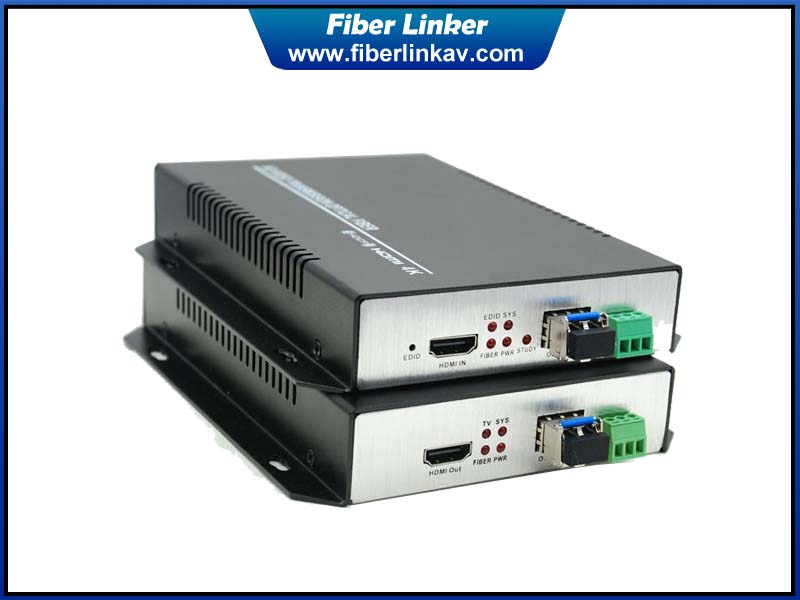

This 4K HDMI fiber optic extender is a broadcast level high-definition HDMI optical transceiver, converting HDMI signal into 10G difference signal through the patent conversion chip. The optical module and optical fiber are used to send and receive, which realized remote transmission of HDMI multimedia signal. Through light module of different transmission distance, it realized the long distance transmission as far as 60 km. This transmission product has no loss, no transmission delay and can meet various requirements of HD long distance transmission. It supports HDMI 1.4 HD and 3D video signal transmission. The EDID can be reversed and it supports HDCP. The resolution can respectively up to 720 p / 60 Hz, 1080 I / 60 Hz, 1080 p /30 Hz, 1080 p / 60 Hz, 1080 p / 120 Hz and it supports 7.1 -channel PCM surround sound and audio compression.

Fetures

1. Full digital, zero compression and zero delayed
2. Optional RS232, USB for keyboard and mouse
3. Support HDCP standard
4. Support 10Gbps data rate
5. Compatible with HDMI1.4
6. Support 3D
7. Support video resolution up to 4K*2K@30Hz.
8. Support copy EDID.
9. Transmits HDMI video signals up to 60km over one fiber optic cable.
10. Compatible with DVI signal transmission.
11. Simple to install, plug and play.
12. Supports Customization and OEM.
Specification
